Hytera TC-780

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

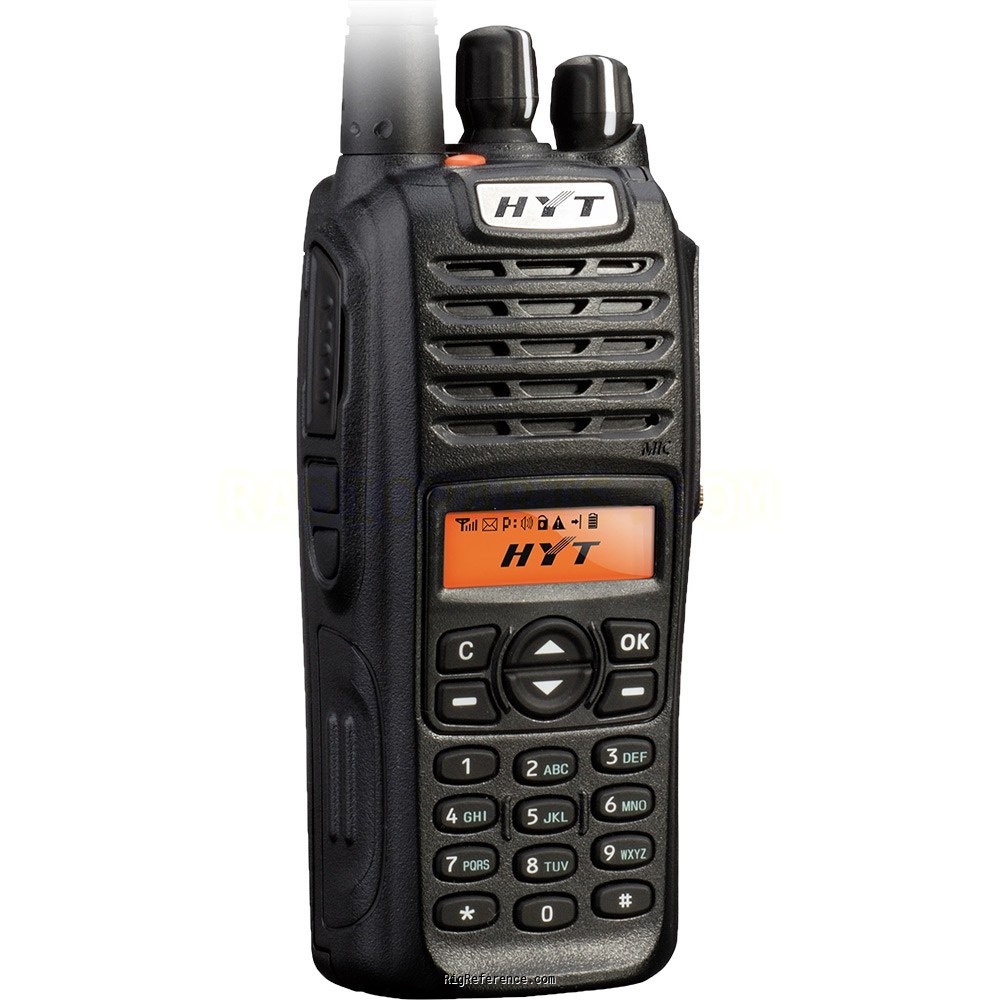

The Hytera TC-780 is a handheld VHF/UHF transceiver. Frequency range is 136-174 MHz and 400-520 MHz. Tuning steps are selectable at 25 kHz, 20 kHz, or 12.5 kHz. RF output is selectable at 5W, 4W, or 1W. Audio output is 0.5W. Features include 1 memory bank with 256 channels. Power requirements are 7.4V, 1700mAh (Li-Ion Battery). Dimensions are 54 × 126 × 35 mm. Weight is 360 gr.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 25 / 20 / 12.5 kHz
Memories: 256 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
400-520 MHz
Modulations: FM
Sensitivity: ≤ 0.25 µV / 0.28 µV
Selectivity: 70 / 60 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 0.5 W

Transmitter

TX-range: 136-174 MHz
400-520 MHz
Modulations: FM
RF-output: 5 / 4 / 1 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4V, 1700mAh (Li-Ion Battery)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 126 × 54 × 35 mm (4.96 × 2.13 × 1.38 in)
Weight: 360 gr (12.7 oz)
Form factor: Handheld
Manufactured: Between 201x and 201x in China

Other features

Usage: Commercial / Land mobile communication
Features + options: -
Accessories: -
RigReference ID: 5646
MPN: HYTERA-TC-000780
