STAMPFL micro swRX

Portable Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

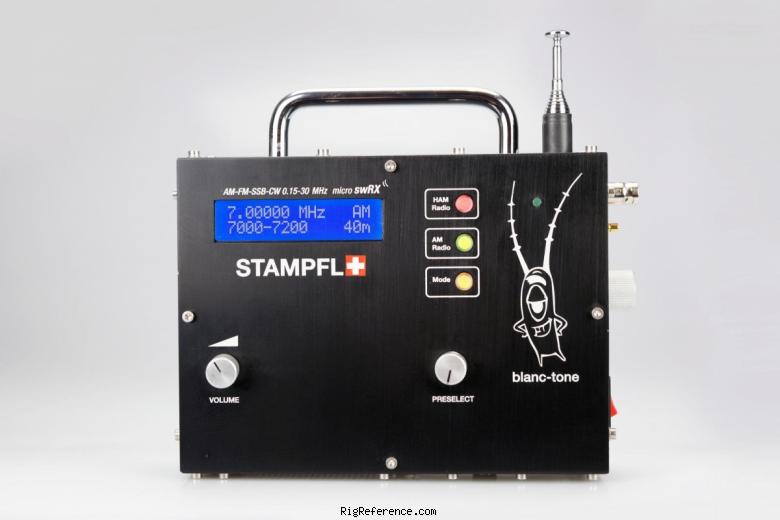

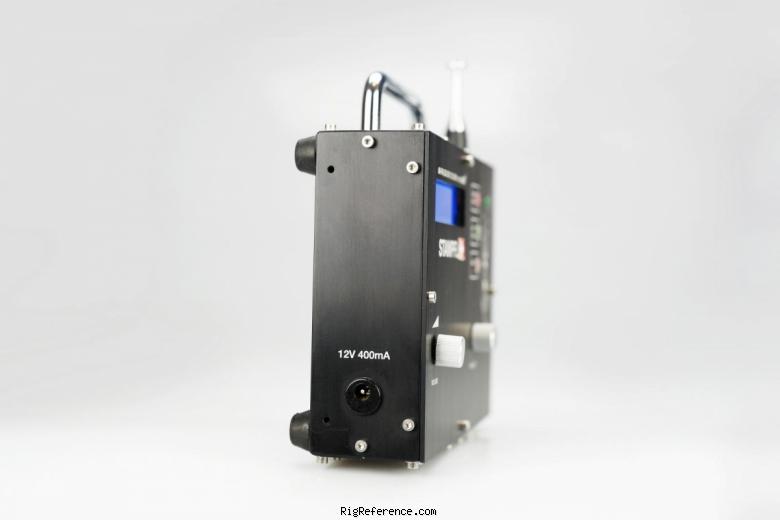

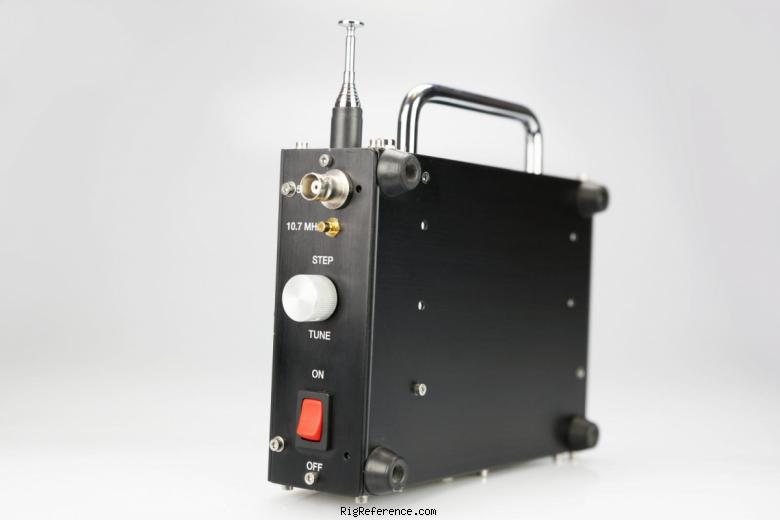

The STAMPFL micro swRX is a portable receiver covering 0.15-30 MHz. It utilizes a Blanc-tone receiver system with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. The radio weighs 600 gr and has dimensions of 125 × 170 × 50 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.15-30 MHz
Modulations: AM FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Blanc-tone receiver
IF-frequencies: 1st: 10.7 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC + Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 170 × 125 × 50 mm (6.69 × 4.92 × 1.97 in)
Weight: 600 gr (1.3 lbs)
Form factor: Portable
Manufactured: Between 2013 and 201x in Switzerland

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5678
MPN: STAMPFL-MICRO-SWRX

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used STAMPFL micro swRX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the STAMPFL micro swRX is around:

USD 240 ~ USD 446

This estimate is based on similar equipment and may not reflect the exact value of this model.
