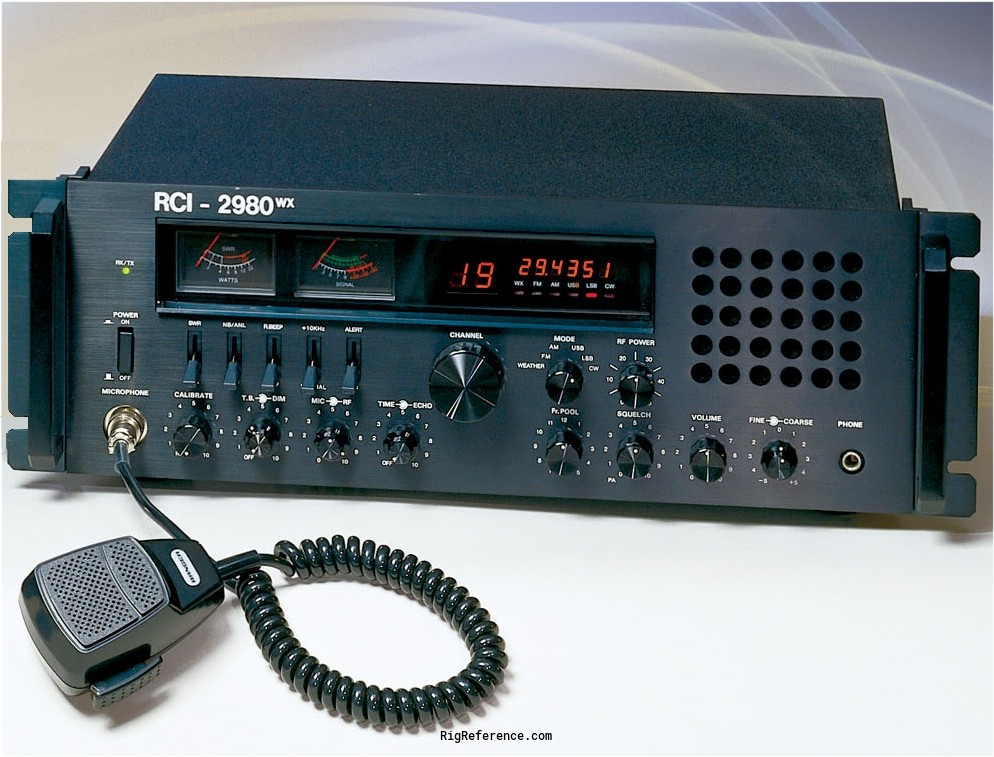

Ranger RCI-2980

Base Station CB Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Citizen band/freeband/export/amateur transceiver.

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
10 kHz

Receiver

RX-range
25.615-28.305 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
AM/CW: 0.7 µV (10 dB S/N)
FM: 0.5 µV (12 dB SINAD)
SSB: 0.2 µV (10 dB S/N)
Selectivity
AM/FM: 10 kHz (-50 dB)
SSB: 2 kHz (-5 dB), 4 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
25.615-28.305 MHz
Modulations
AM   FM   CW   SSB
RF-Output
25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Manufactured
Between 20xx and 20xx in Taiwan
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
240 channels in 6 bank(s)
Usage
Citizen Band (27Mc)
Features + options
Roger beep
Dimmer
Echo tone
Variable RF power output
Accessories
?
MPN
RANGER-RCI-002980
