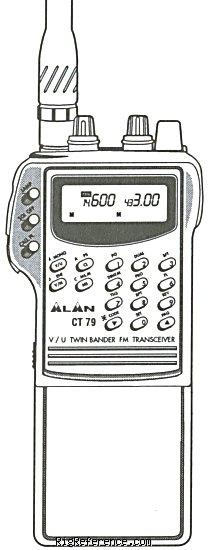

The Alan CT-79 is a handheld VHF/UHF transceiver. It covers 100-173 / 350-469.95 MHz in receive and 144-146 / 432-436 MHz in transmit. Tuning steps are selectable from 5, 10, 12.5, 20, 25, 50 or 100 kHz. RF output is selectable at 0.5, 2.5 or 5 W. The radio features Twin RX and dimensions are 92 × 65 × 38 mm without battery.
General characteristics
- HAM bands
- 6m 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 100-173 / 350-469.95 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 432-436 MHz
- Modulations
- FM
- RF-output
- 0.5 / 2.5 / 5 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 65 × 92 × 38 mm (2.56 × 3.62 × 1.50 in) without battery
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 5885
- MPN
- ALAN-CT-000079
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alan CT-79. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Alan CT-79 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
