Albrecht AE-402

Handheld UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

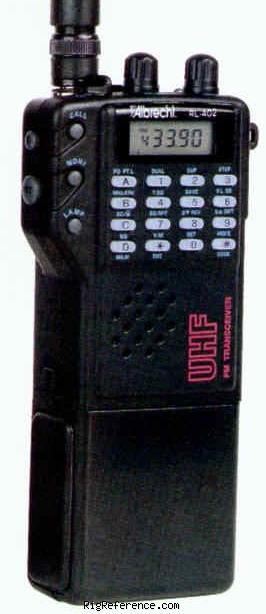

The Albrecht AE-402 is a handheld UHF transceiver. It covers 430-440 MHz for both RX and TX. RF output power is selectable at 0.35, 2.5 or 5 W. The radio features 1 memory bank with 20 channels. Power requirements are 5.-16 V DC. The current drain in receive mode is 50 mA and 950 mA max in transmit mode. Dimensions are 63 × 152 × 35 mm.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 / 20 / 25 / 50 kHz
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: FM
RF-output: 0.35 / 2.5 / 5 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 5.-16 V DC
Current drain RX: 50 mA
TX: 950 mA max

Physical

Dimensions (w×h×d): 152 × 63 × 35 mm (5.98 × 2.48 × 1.38 in)
Weight: 300 gr (10.6 oz) excl. battery / antenna
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5892
MPN: ALBRECHT-AE-000402

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
