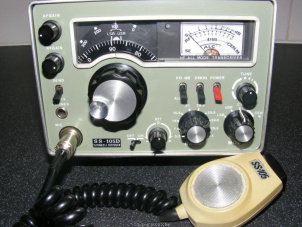

Shimizu Denshi SS-105D

Compact QRP | 100 W

Specs Manuals (3) Reviews (0) Prices (0) Compare

The Shimizu Denshi SS-105S was offered as a "semi kit". The main board was pre-built and pre-aligned while the final assembly was done by the user.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: 1 kHz
Memories: ?

Receiver

RX-range: 80-10 m
Modulations: FM CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 80-10 m
Modulations: FM CW USB LSB
RF-output: 100 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 1982 and 1984 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: RIT
CW filter optional
FM optional
Noise filter optional
Accessories: -
RigReference ID: 5907
MPN: SHIMIZU-DENSHI-SS-000105D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Shimizu Denshi SS-105 Manual PDF - Unknown size, submitted by RigReference
: Shimizu Denshi SS-105 Assembly manual PDF - Unknown size, submitted by RigReference
: Shimizu Denshi SS-105S Schematic diagram PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Shimizu Denshi SS-105D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Shimizu Denshi SS-105D is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
