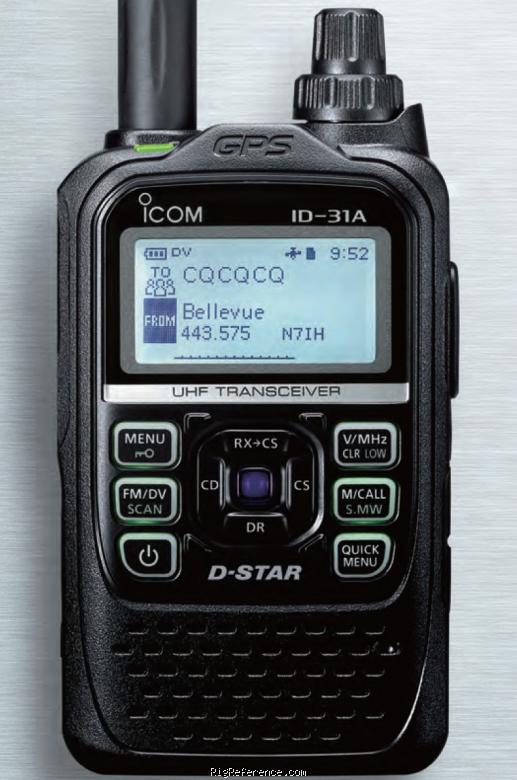

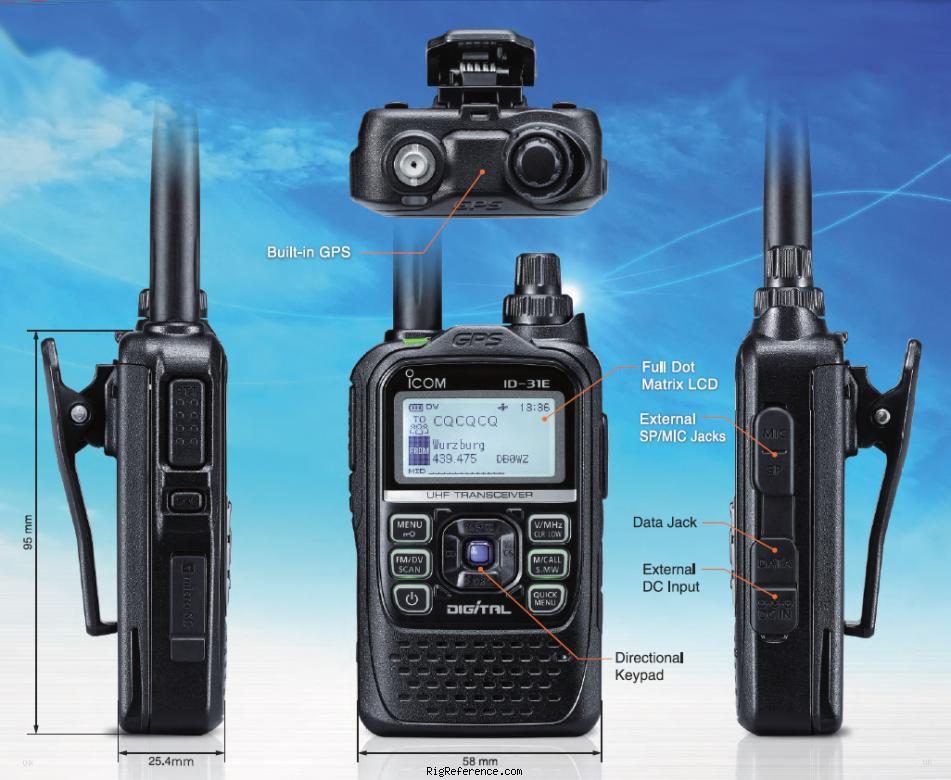

European version of the ICOM ID-31A. The Icom ID-31 first appeared at the Friedrichshafen Ham Radio Show in Germany June 24th, 2011. Icom managed to put D-STAR in a package small enough to fit in your hand.
This 440 MHz HT also supports conventional FM communication, is IPX7 waterproof and features a built-in GPS receiver.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
- Memories
- 1252 channels in 1 bank(s)
Receiver
- RX-range
- 400-479 MHz
- Modulations
- AM FM N-FM GMSK DV
- Sensitivity
- FM / N-FM: 0.18 µV (12 dB SINAD)
DV: 0.28 µV (1% BER) - Selectivity
- FM: 55 dB
N-FM / DV: 50 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 46.35 MHz / 450khz
- Image rejection
- ?
- Audio output
- 400 mW
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM N-FM GMSK DV
- RF-output
- 5 / 2.5 / 1 / 0.1 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5.5-7.4 V DC (Alkaline or battery pack)10-16 V DC external
- Current drain RX
- 200-450 mA
- TX
- 2.5 A max
Physical
- Dimensions (w×h×d)
- 58 × 95 × 26 mm (2.28 × 3.74 × 1.02 in)
- Weight
- 225 gr (7.9 oz) with BP-271 and antenna
- Form factor
- Handheld
- Manufactured
- Between 2011 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- D-Star concept

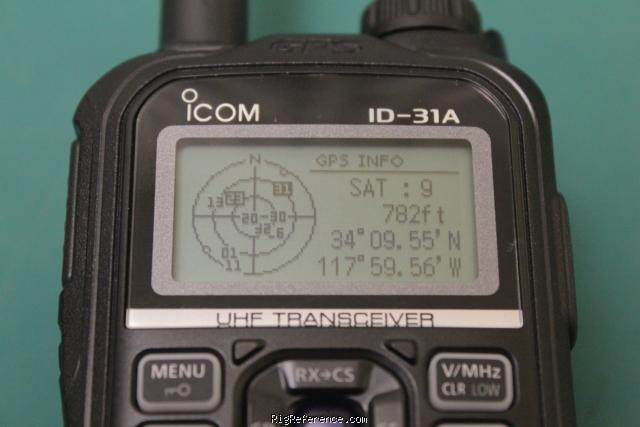

Built-in GPS
CTCSS / DTCS
Micro SD card slot
128×96 dot-matrix display
IPX7 waterproof - Accessories
- -
- RigReference ID
- 5986
- MPN
- ICOM-ID-000031E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM ID-31E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM ID-31E is around:
- EUR 91.00 ~ EUR 39.00
These estimates are based on the following prices:
