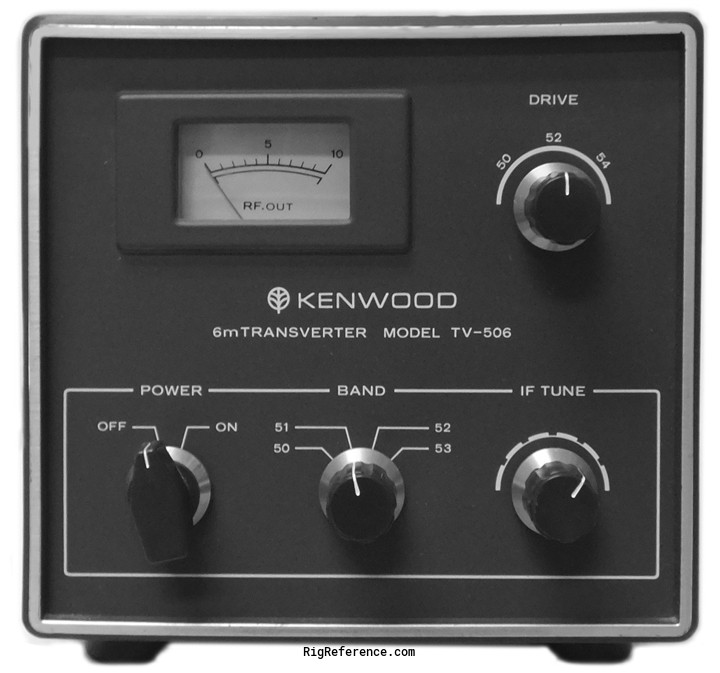

The Kenwood TV-506 is a 10 to 6 meter transverter for the Kenwood TS-520 and Kenwood TS-820 series. It operates from 50 to 54 MHz with 16 watts input and 10 watts output on SSB and CW.

Frequency range

RX-range
10m -> 50-54 MHz
TX-range
10m <- 50-54 MHz
HAM bands
6m  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
All mode
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
SSB/CW: 16 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-16 V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
168 × 153 × 336 mm (6.61 × 6.02 × 13.23 in)
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 197x and 197x in Japan
MPN
KENWOOD-TV-000506

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
Built-in speaker
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
