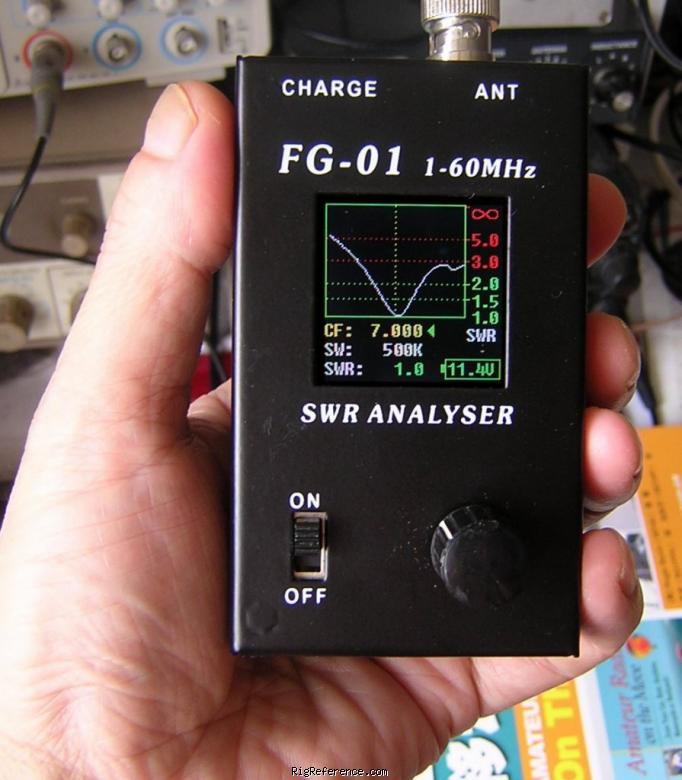

Pocket SWR antenna analyser, ranging from 1 to 60 MHz. Output is 15 dBm.
Center frequency step: 1 / 10 / 100 / 1000 MHz.
Scan width display: 10 / 20 / 50 / 100 / 200 / 500 kHz, 1 / 2 / 5 / 10 / 20 / 50 MHz.

Frequency range

RX-range
1-60 MHz (1-72 MHz usable)
TX-range
?
HAM bands
?
Stability
?
Tuning steps
1 / 10 / 100 kHz / 1 MHz
Filters
?

Receiver

Modulations
All mode
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
?

Connections

Antenna
BNC
Impedance
?

Electrical

Power requirements
10-12.8 V DC
Current drain RX
400 mA
TX
?

Physical

Dimensions (w×h×d)
97 × 58 × 38 mm (3.82 × 2.28 × 1.50 in)
Weight
380 gr (13.4 oz) with battery
Form factor
Handheld
Manufactured
Between 2013 and 201x
MPN
YOUKITS-FG-000001

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Color display
Accessories
?
