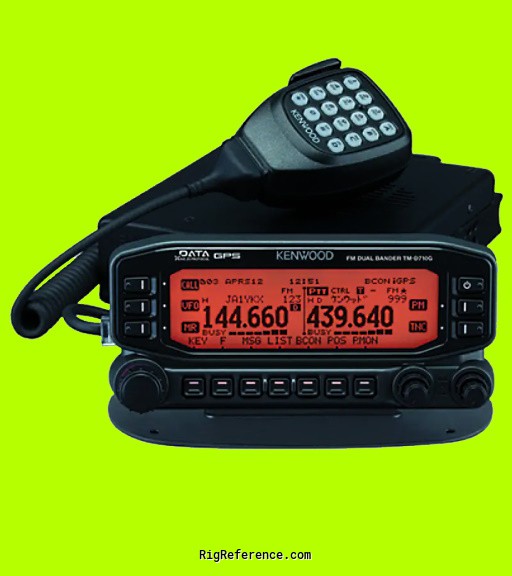

The Kenwood TM-D710G is a 2m/440 MHz transceiver with a frequency range of 144-148 / 430-450 MHz. It features GPS, APRS, Dual Receive on Same Band (VxV, UxU), EchoLink and an Invertible Front Panel. The RF output is 50/10/5 W. Memory includes 1 bank with 1000 channels. Power requirements are 13.8V DC ±15%. Dimensions are 43 × 140 × 142 mm. Weight is 1.5 kg. Current drain in receive mode is 1.2 A max, and 13 A max in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ±5 p.p.m.
- Tuning steps
- ?
- Memories
- 1000 channels in 1 bank(s)
Receiver
- RX-range
- 118-524 / 800-1300 MHz (Cellular blocked)
- Modulations
- AM FM
- Sensitivity
- 146/440 MHz: <0.16 µV (12 dB SINAD)
- Selectivity
- -6 dB: More than 11 kHz
-40 dB: Less than 30 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 45.05 MHz (Band A), 49.95 MHz (Band B)
2nd: 455 kHz (Band A), 450 kHz (Band B) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- 50 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 1.2 A max
- TX
- 13 A max
Physical
- Dimensions (w×h×d)
- 140 × 43 × 142 mm (5.51 × 1.69 × 5.59 in) Panel: 155×138×70 mm
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 201x and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- GPS
APRS
Dual Receive on Same Band (VxV, UxU)
EchoLink
Invertible Front Panel - Accessories
- -
- RigReference ID
- 6040
- MPN
- KENWOOD-TM-D000710G
Manuals, diagrams and brochures
- Kenwood TM D710G User'S Manual PDF - 7.10 MB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-D710G. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-D710G is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
