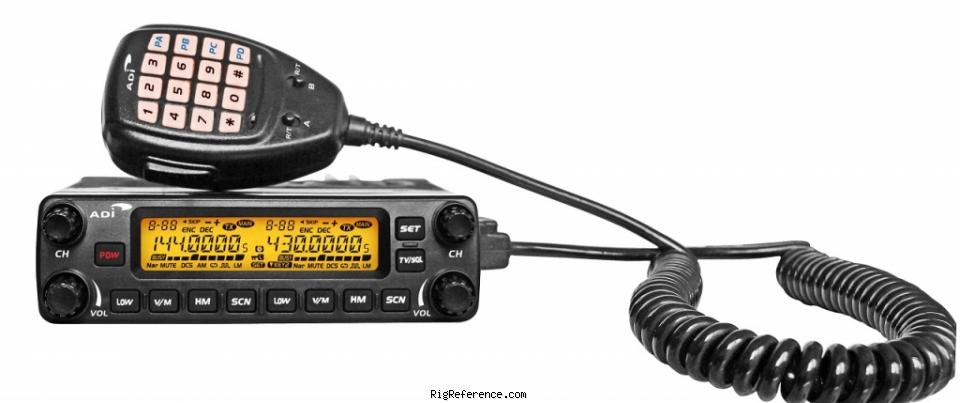

This low-cost rig is sold under many different brands. All carry the same PCB.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 5 p.p.m.
- Tuning steps
- 12.5 / 20 / 25 kHz
- Memories
- 758 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 220-260 / 350-390 / 400-490 MHz
- Modulations
- FM N-FM
- Sensitivity
- FM: 0.18 µV
N-FM: 0.22 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- >2W@5%
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM
- RF-output
- VHF: 50/25/10/5 W, UHF: 35/25/10/5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.8 A
- TX
- 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 212 mm (5.51 × 1.57 × 8.35 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2013 and 20xx in Taiwan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6041
- MPN
- ADI-AM-000580
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ADI AM-580. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ADI AM-580 is around:
- EUR 412.00
These estimates are based on the following prices:
