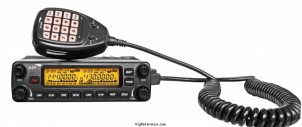

ADI AM-580

Mobile dual-band transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ADI AM-580 rigs and spare parts on eBay Find the ADI AM-580 on Amazon
We receive a small fee when you buy through these links, thank you!

This low-cost rig is sold under many different brands. All carry the same PCB.

Frequency range

RX-range
118-174 / 220-260 / 350-390 / 400-490 MHz
TX-range
136-174 / 400-480 MHz
HAM bands
2m  70cm
Stability
± 5 p.p.m.
Tuning steps
12.5 / 20 / 25 kHz
Filters
?

Receiver

Modulations
FM   N-FM
Sensitivity
FM: 0.18 µV
N-FM: 0.22 µV
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
>2W@5%

Transmitter

Modulations
FM   N-FM
RF-Output
VHF: 50/25/10/5 W, UHF: 35/25/10/5 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
0.8 A
TX
10 A

Physical

Dimensions (w×h×d)
140 × 40 × 212 mm (5.51 × 1.57 × 8.35 in)
Weight
?
Form factor
Mobile
Manufactured
Between 2013 and 20xx in Taiwan
MPN
ADI-AM-000580

Other features

Memories
758 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ADI AM-580 user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ADI AM-580. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ADI AM-580 is around:

  • EUR 457.00
Year Historic price Condition Submitted by
2019 EUR 458.00 New / Mint RigReference
