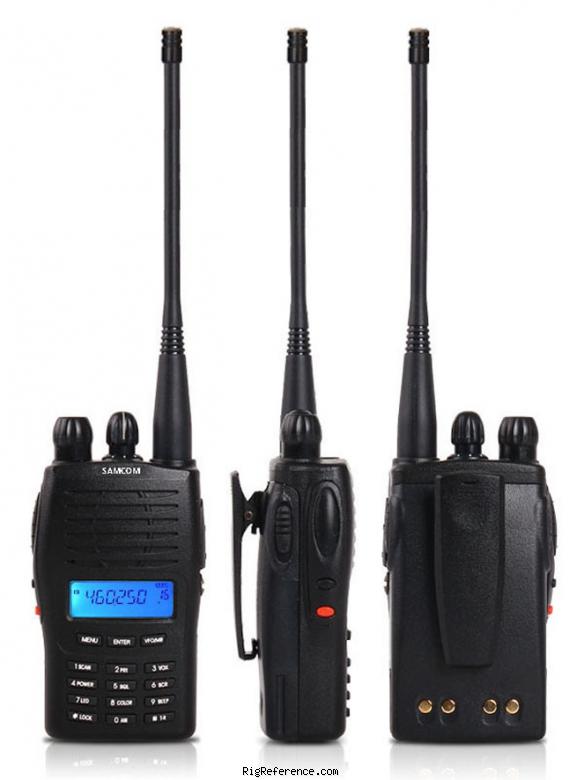

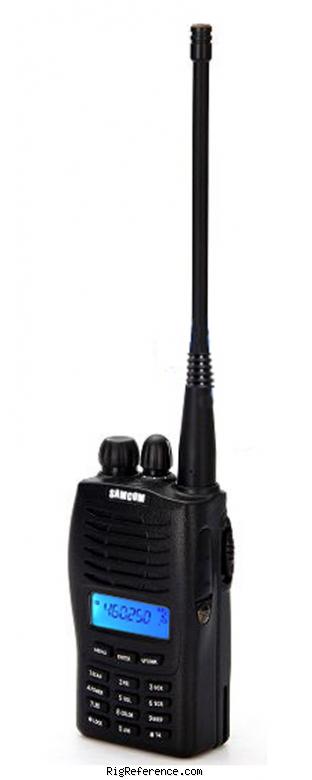

Samcom MT-777

Handheld dual-band transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Samcom MT-777 is a handheld dual-band transceiver. It covers 136-174 MHz and 400-470 MHz for both receive and transmit. The radio has a maximum RF output of 5 W and features 128 memory channels in 1 memory bank. It supports 50 CTCSS tones and 105 DCS codes, includes a 1750Hz tone, SOS emergency function, shift repeater, VOX and scan functions, and a backlit display with 3 colors. It is powered by a 2200 mAh Li-ion battery pack.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 12.5 / 25 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
400-470 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 MHz
400-470 MHz
Modulations: FM
RF-output: 5 W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 2200 mAh Li-ion battery pack
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 201x and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: 50 CTCSS tones/105 DCS codes
1750Hz
SOS emergency function
Shift repeater
VOX and Scan function
Back-lit display with 3 colors
Accessories: -
RigReference ID: 6114
MPN: SAMCOM-MT-000777

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Samcom MT-777. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Samcom MT-777 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
