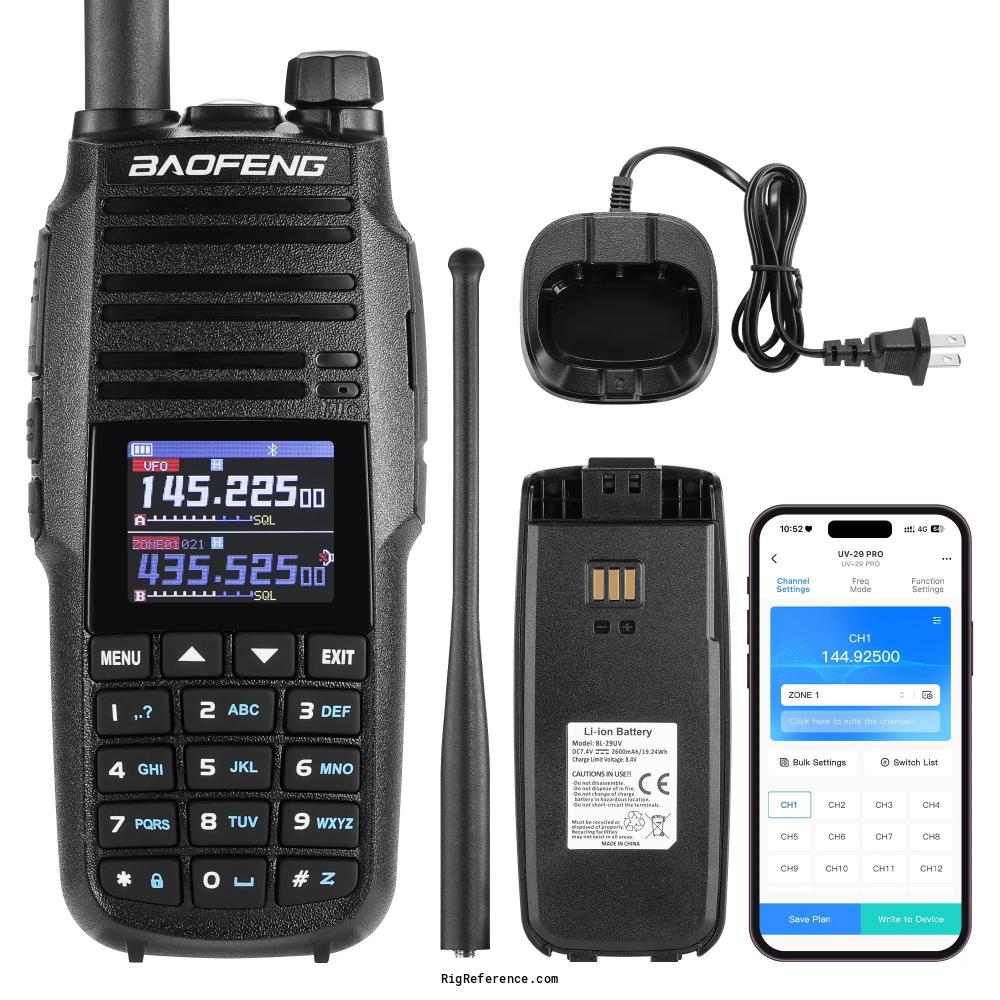

Baofeng UV-29 Pro

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

1000 channels in 10 bank(s)

Receiver

RX-range

FM broadcast 76-108 MHz, AM airband 108-136 MHz
136-174 / 400-520 MHz
NOAA weather
EU version: FM, airband, VHF & UHF

Modulations

AM   FM   N-FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 420-450 MHz
EU version: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

10 / 5 / 2 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V DC ±10%, Li-ion battery 2600 mAh USB-C or desktop charging

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

68 × 154 × 42 mm (2.68 × 6.06 × 1.65 in) Without antenna

Weight

320 gr (11.3 oz)

Form factor

Handheld

Manufactured

Between 2026 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual band 2 m / 70 cm, 10/5/2 W
UHF/VHF cross-band repeater
1000 channels in 10 zones
Bluetooth data (app programming) and Bluetooth audio for wireless headsets and PTT
Wideband receive: FM broadcast, AM airband, NOAA weather
One-key frequency copy (frequency, CTCSS/DCS)
Programmable SK1 side key
25 / 12.5 kHz channel spacing
USB-C charging

Accessories

-

RigReference ID

6850

MPN

BAOFENG-UV-000029-PRO

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Baofeng UV-29 Pro. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-29 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Baofeng UV-29 Pro in Good condition is around:

• USD 50
