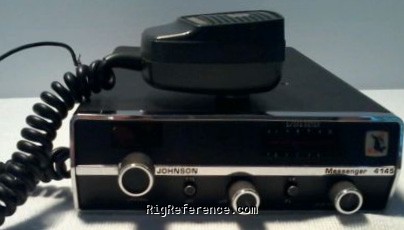

One for the first CB rigs made by E.F. Johnson. It featured a hard wired crystal mic and LED display with dimmer function by pulling the squelch knob.

Any information regarding this rig is appreciated!

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
Channelized
Memories
40 channels in 1 bank(s)

Receiver

RX-range
26.965-27.? MHz
Modulations
-
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
26.965-27.? MHz
Modulations
-
RF-output
? W

Connections

Antenna
SO-239
Impedance
?
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Usage
Citizen Band (27Mc)
Features + options

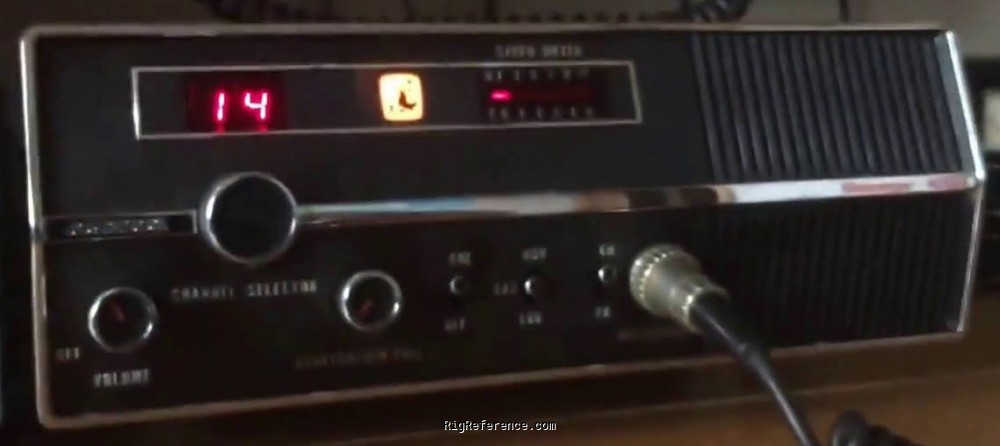

LED channel read out with dimmer
5-segment LED S/RF bar-graph meter
ANL On/Off
PA
Accessories
-
RigReference ID
6130
MPN
E.F.-JOHNSON-MESSENGER-004145

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used E.F. Johnson Messenger 4145. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the E.F. Johnson Messenger 4145 is around:

  • USD 6.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2008 USD 40.00 Used / Good rreh917
