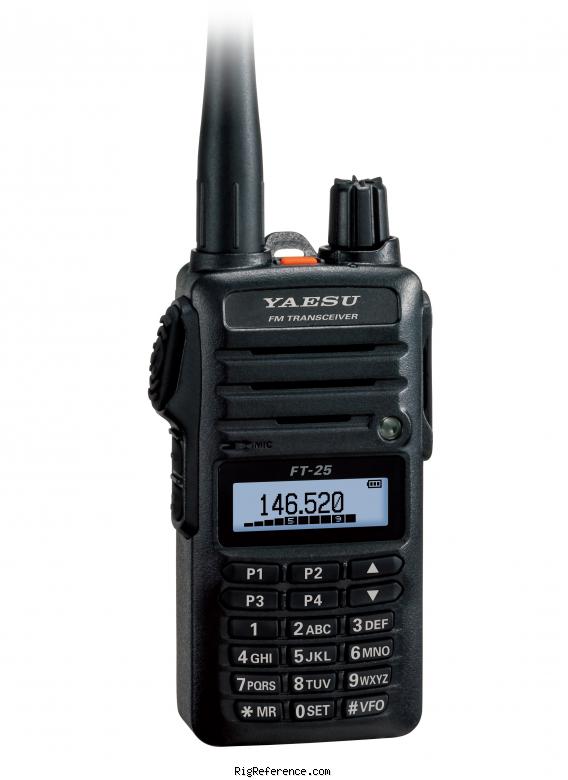

Yaesu FT-25E/R

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

200 channels in 1 bank(s)

Receiver

RX-range

144-146 MHz (FT-25E)
144-148 MHz (FT-25R)

Modulations

FM   N-FM   W-FM

Sensitivity

140-150 MHz: 0.2 uV (12 dB SINAD)

Selectivity

12 kHz (-6 dB), 35 kHz (-60 dB)

Filters

?

Receiver system

Direct conversion

IF-frequencies

?

Image rejection

?

Audio output

800 mW @ 10% THD into 16 Ω

Transmitter

TX-range

65-108 / 136-174 MHz

Modulations

FM   N-FM

RF-output

0.5 / 2 / 5 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC (battery pack) or 6-9 V DC external

Current drain RX

18-205 mA

TX

1.5 A max

Physical

Dimensions (w×h×d)

52 × 104 × 31 mm (2.05 × 4.09 × 1.22 in)

Weight

260 gr (9.2 oz) inclusing antenna and SBR-25Li battery pack

Form factor

Handheld

Manufactured

Between 2017 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL and DCS
DTMF
ARTS

Accessories

-

RigReference ID

6139

MPN

YAESU-FT-000025E/R

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-25E/R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Yaesu FT-25E/R is around:

• USD 166 ~ USD 308

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
