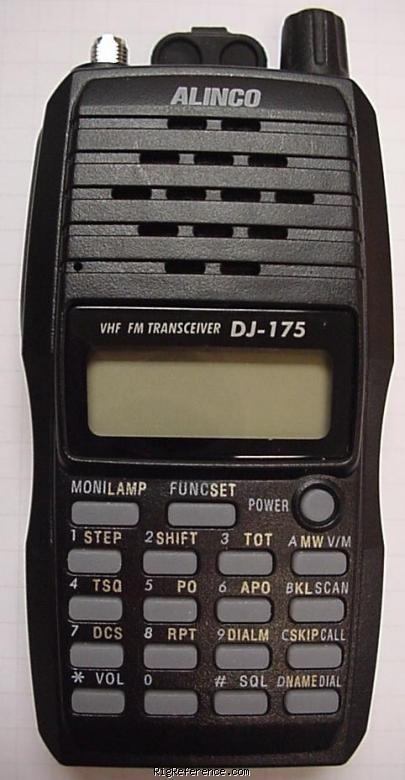

The Alinco DJ-175T is a handheld 2m transceiver. It covers 136-174 MHz in receive and 144-148 MHz in transmit. The transceiver features a double conversion superheterodyne receiver system with IF frequencies of 1st: 21.7 MHz and 2nd: 450 KHz. It has an RF output of High: 5 W, Medium: 2 W, Low: 0.5 W. The DJ-175T includes CTCSS/DCS and DTMF features. It has 1 memory bank with 200 channels. Power requirements are 7.2V DC battery pack (no external DC port). Dimensions are 108 × 58 × 36 mm. The current drain in receive is 30-250 mA and in transmit, max 1.5 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 20 / 25 / 30 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM
- Sensitivity
- 0.2 µV (12 dB SINAD)
- Selectivity
- FM: 12 kHz (-6 dB), 26 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 21.7 MHz
2nd: 450 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 5 W, Medium: 2 W, Low: 0.5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC battery pack (no external DC port)
- Current drain RX
- 30-250 mA
- TX
- Max 1.5 A
Physical
- Dimensions (w×h×d)
- 58 × 108 × 36 mm (2.28 × 4.25 × 1.42 in)
- Weight
- 245 gr (8.6 oz) with batteryEBP-72 and antenna
- Form factor
- Handheld
- Manufactured
- Between 2008 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS and DTMF.
- Accessories
- -
- RigReference ID
- 2240
- MPN
- ALINCO-DJ-000175T
Manuals, diagrams and brochures
- Alinco DJ-175D Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-175 Service manual PDF - Unknown size, submitted by RigReference
