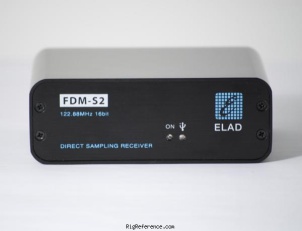

ELAD FDM-S2 Direct sampling HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Successor to the ELAD FDM-S1.
Price when new in 2017: EUR 525.00

Frequency range

RX-range
0.9-52 / 74-108 / 135-160 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   AM-sync   FM   W-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
HF 9kHz-52MHz MDS: -132dBm @ 14MHz, Clipping lev -8dBm
FM 74-108MHz sensitivity <2uV 12dB SINAD @ 98MHz, Clip lev -3dBm
VHF 135-160MHz MDS -137dBm @ 145MHz, Clipping Level -19dBm
Selectivity
≥ 100 dB, Software defined
Receiver system
SDR / direct conversion
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
5 V DC (USB)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
110 × 40 × 90 mm (4.33 × 1.57 × 3.54 in)
Weight
360 gr (12.7 oz)
Form factor
Headless
Manufactured
Between 2012 and 201x in Italy
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Separate inputs Antenna for HF / 6m and FM / VHF / Bypass
WFM Stereo decoder with RDS decoder
61.44 MHz sampling frequency
32-bit
USB 2.0
USB-powered
Accessories
-
