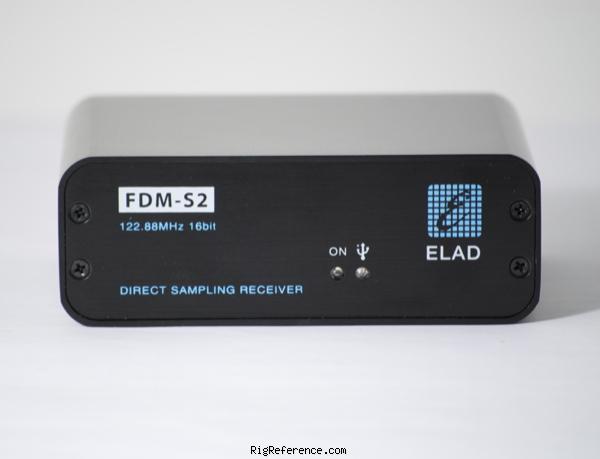

ELAD FDM-S2

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.9-52 / 74-108 / 135-160 MHz

Modulations

AM   AM-sync   FM   W-FM   CW   USB   LSB   DSB   RTTY

Sensitivity

HF 9kHz-52MHz MDS: -132dBm @ 14MHz, Clipping lev -8dBm
FM 74-108MHz sensitivity <2uV 12dB SINAD @ 98MHz, Clip lev -3dBm
VHF 135-160MHz MDS -137dBm @ 145MHz, Clipping Level -19dBm

Selectivity

≥ 100 dB, Software defined

Filters

?

Receiver system

SDR / direct conversion

IF-frequencies

?

Image rejection

?

Audio output

?

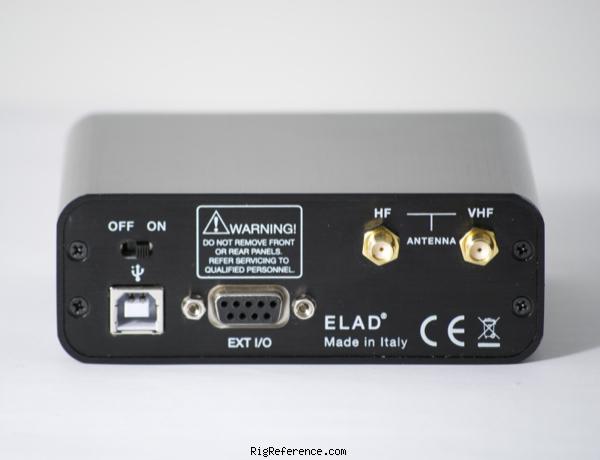

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

5 V DC (USB)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

110 × 40 × 90 mm (4.33 × 1.57 × 3.54 in)

Weight

360 gr (12.7 oz)

Form factor

Headless

Manufactured

Between 2012 and 201x in Italy

Other features

Usage

Amateur / Ham radio operators

Features + options

Separate inputs Antenna for HF / 6m and FM / VHF / Bypass
WFM Stereo decoder with RDS decoder
61.44 MHz sampling frequency
32-bit
USB 2.0
USB-powered

Accessories

-

RigReference ID

6167

MPN

ELAD-FDM-S000002

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ELAD FDM-S2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ELAD FDM-S2 in Good condition is around:

• EUR 160
