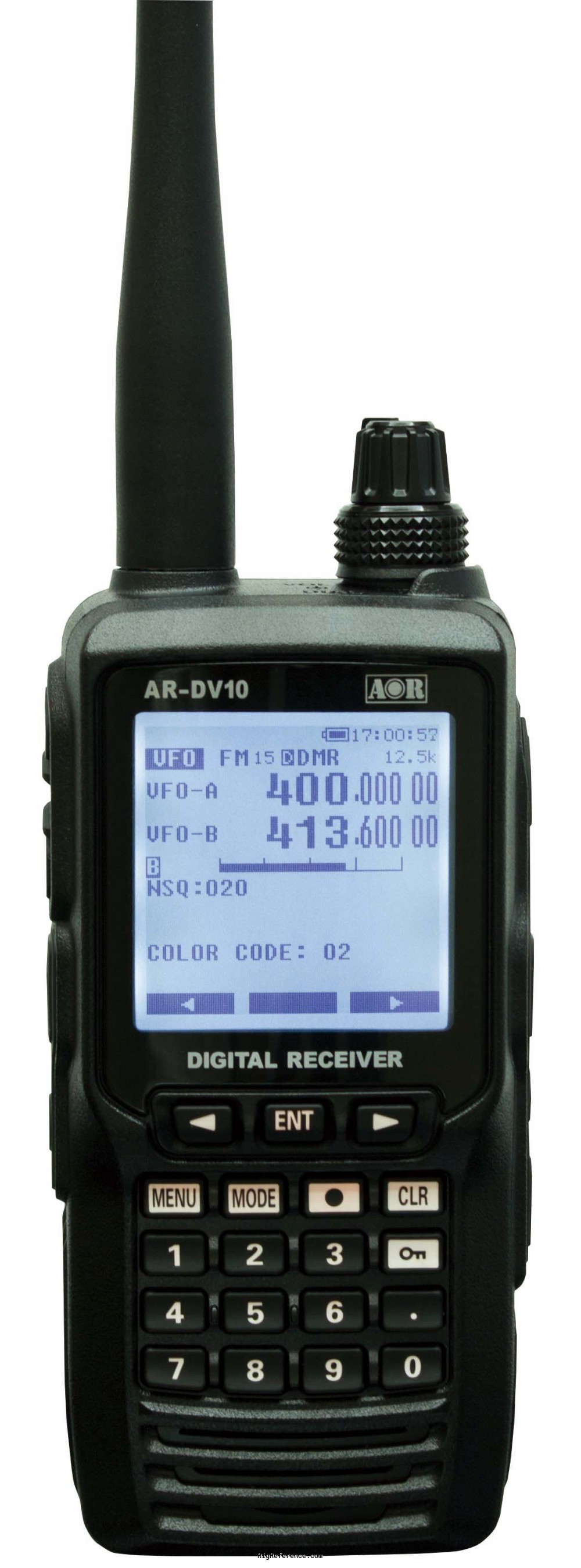

AOR AR-DV10 Handheld Communications Receiver

  Add a review   View all reviews (0)   Add to my shack




Frequency range

RX-range
0.1-1300 MHz
TX-range
-
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m
Stability
≤ 2.5 p.p.m. after 5 min. warm-up
Tuning steps
-
Filters
-

Find the AOR AR-DV10 on ebay

Receiver

Modulations
AM   AM-sync   FM   N-FM   W-FM   CW   USB   LSB   DMR   D-STAR   P25   APCO-25   GMSK
Sensitivity
530 kHz - 18 MHz: 0.71 µV (12 dB SINAD)
18 - 1300 MHz: 0.32 µV (12 dB SINAD)
Selectivity
-
Receiver system
Direct, double or triple conversion depending on selected range
IF-frequencies
1st: 1.705 GHz
Image rejection
-
Audio output
1 W internal speaker, 3.5mm jacks

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
Li-Ion
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Handheld
Manufactured
Between 2017 and 201x in Japan

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Micro-SD card
Digimode autodetect
IPX5 water resistant

Support for the following digital modes:
- Alinco (GMSK - AMBE)
- Apco P25 (C4FM - IMBE)
- D-Star (GMSK - AMBE)
- DCR/NXDN (C4FM - AMBE 2)
- DMR/MotoTRBO (C4FM - AMBE 2)
- dPMR (C4FM - AMBE 2)
- Yaesu (C4FM - AMBE 2)
- Tetra (DMO - only)
