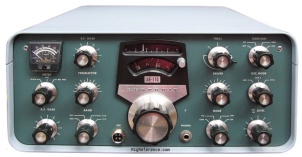

Heathkit SB-110A 6m SSB Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Upgraded version of the Heathkit SB-110. The Heathkit SB-110A can be used both mobile and fixed-station using Heathkit DC and AC power supplier.
2×6146 finals
Original price 1965 in the US: $299

Frequency range

RX-range
49.5-54 MHz in 500 kHz segments
50.0-52.0 MHz with crystals
TX-range
49.5-54 MHz in 500 kHz segments
50.0-52.0 MHz with crystals
HAM bands
6m
Stability
≥ 100 Hz per hour, after 20 mins. warm-up. ≥ 100 Hz / ±10% supply voltage
Tuning steps
-
Filters
-

Receiver

Modulations
CW   USB   LSB
Sensitivity
0.1 µV (10 dB S/N)
Selectivity
2.1 kHz @ -6 dB
5 kHz @ -60 dB
Receiver system
-
IF-frequencies
1st: 8395 kHz
2nd 3395 kHz
Image rejection
≥ 50 dB
Audio output
1 W

Transmitter

Modulations
CW   USB   LSB
RF-Output
SSB: 100 W PEP, CW: 90 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
380 × 168 × 339 mm (14.96 × 6.61 × 13.35 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station
Manufactured
Between 1965 and 1971 in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
VOX (Voice Operated Transmit)
PTT (Push To Talk)
Built-in crystal calibrator (100 kc intervals)
ALC (Auto. Level Control)
S-meter
Accessories
-
