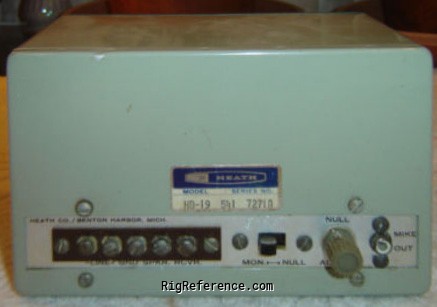

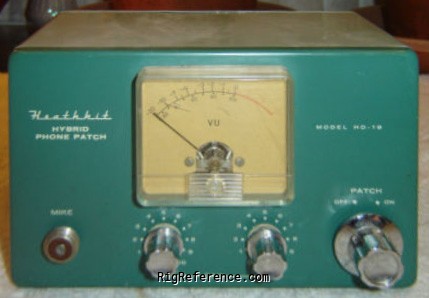

This Heathkit HD-19 phone-patch allows a ham to connect his radio to the standard telephone ‘POTS’ line and let someone at the other end of the phone-line communicate with the person at the other end of the radio link; often this was used for third-party traffic. Phone-patches can be run between third parties in the US, and also to people in a limited number of countries that have third party agreements with the US.
General characteristics
- HAM bands
- None
- Frequency stability
- -
- Tuning steps
- -
- Memories
- None
Receiver
- RX-range
- N/A
- Modulations
- All mode
- Sensitivity
- -
- Selectivity
- -
- Filters
- -
- Receiver system
- -
- IF-frequencies
- -
- Image rejection
- -
- Audio output
- -
Transmitter
- TX-range
- N/A
- Modulations
- All mode
- RF-output
- -
Connections
- Antenna
- Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 187 × 117 × 102 mm (7.36 × 4.61 × 4.02 in)
- Weight
- 1.13 kg (2.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1960 and 1965 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6195
- MPN
- HEATHKIT-HD-000019
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HD-19. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Heathkit HD-19 in Good condition is around:
- USD 17
These estimates are based on the following prices:
