Heathkit GC-1094

Electronic Clock

Specs Manuals (0) Reviews (1) Prices (0) Compare

Find Heathkit GC-1094 rigs and spare parts on eBay

Find the Heathkit GC-1094 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

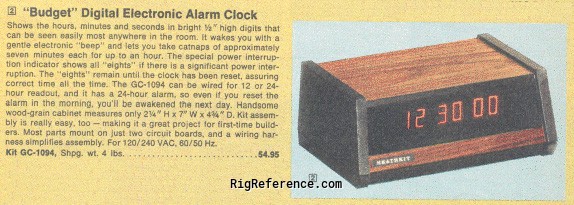

This model was sold as the budget model and was essentially a Heathkit GC-1005. It could be wired either in 12 or 24 hour format. AM / PM alarms can be set with a seven minute snooze interval. Accuracy depends in 50 / 60 Hz power line. The clock is built around an MOS/LSI integrated circuit.
Unlike the Heathkit GC-1005, this model applied 180 V to the keep-alive cathode on each display in order to reduce flickering.

General characteristics

HAM bands: None
Frequency stability: -
Tuning steps: -
Memories: None

Receiver

RX-range: -
Modulations: -
Sensitivity: -
Selectivity: -
Filters: -
Receiver system: -
IF-frequencies: -
Image rejection: -
Audio output: -

Transmitter

TX-range: -
Modulations: -
RF-output: -

Connections

Antenna: -
Impedance: -Ω
Other: -

Electrical

Power requirements: Mains (120 / 240 V AC)
Current drain RX: 6.5 W
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 1977 and 197x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: Full six digits display
12 / 24 hour format
Seven minute interval snooze
Accessories: -
RigReference ID: 6204
MPN: HEATHKIT-GC-001094
