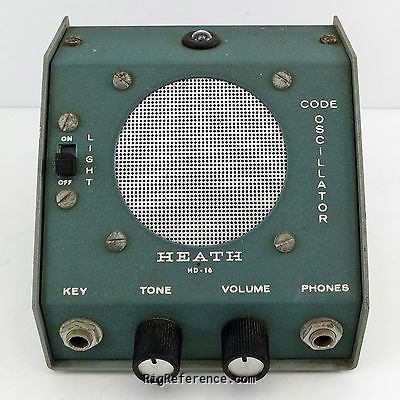

The Heathkit HD-16 Code Oscillator provides you with a simple, inexpensive means of learning
the telegraphic code. The telegraph key that is furnished with the kit is the only external equipment required for forming either audible or visual code characters.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
?
Modulations
-
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
130 Ohms, permanent magnet

Transmitter

TX-range
?
Modulations
-
RF-output
?

Connections

Antenna
Clamps / screws
Impedance
50Ω
Other
-

Electrical

Power requirements
Batteries, 1.5 V or 9 V cell
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
117 × 108 × 120 mm (4.61 × 4.25 × 4.72 in)
Weight
605 gr (1.3 lbs)
Form factor
Base Station
Manufactured
Between 1960 and 1965 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6196
MPN
HEATHKIT-HD-000016
