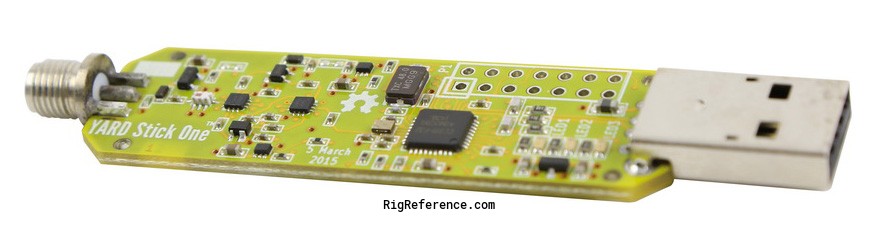

The Open Source YARD Stick One (Yet Another Radio Dongle) can transmit or receive digital wireless signals at frequencies up to 1 GHz. Sold as a test tool, it can be turned into pretty interesting amateur radio applications. Supported modulations include ASK, OOK, GFSK, 2-FSK, 4-FSK and MSK. Data rates of up to 500 kbps can be achieved.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- Official: 300-348 / 391-464 / 782-928 MHz
Unofficial: 281-361 / 378-481 / 749-962 MHz - Modulations
- All mode FSK AFSK
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- Official: 300-348 / 391-464 / 782-928 MHz
Unofficial: 281-361 / 378-481 / 749-962 MHz - Modulations
- -
- RF-output
- ?
Connections
- Antenna
- SMA
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 5 V DC (USB)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Dongle
- Manufactured
- Between 201x and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Full-Speed USB 2.0
- Accessories
- -
- RigReference ID
- 6219
- MPN
- OPEN-SOURCE-YARD-STICK-ONE
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Open Source YARD Stick One. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Open Source YARD Stick One is around:
- USD 71.00
These estimates are based on the following prices:
