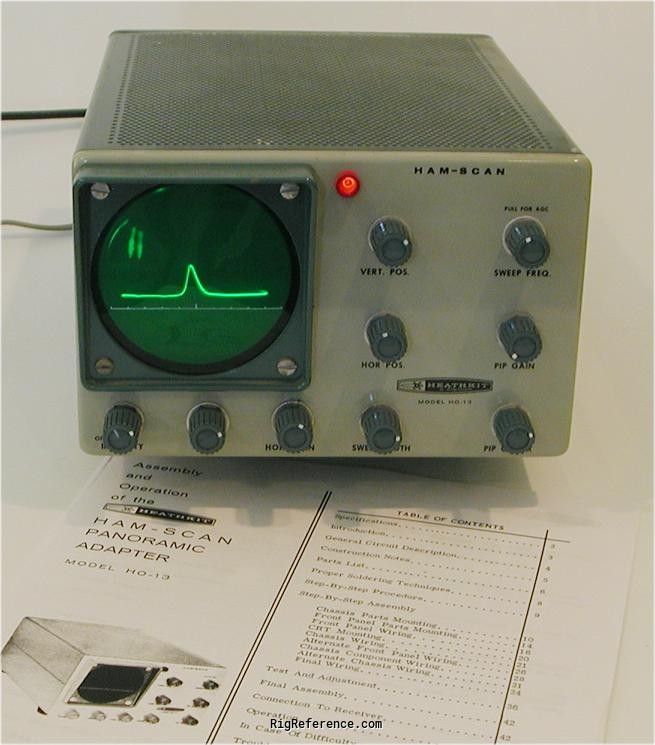

Heathkit HO-13

Ham-Scan panoramic adapter

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Heathkit HO-13 rigs and spare parts on eBay

Find the Heathkit HO-13 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands: None
Frequency stability: ?
Tuning steps: Not applicable
Memories: None

Receiver

RX-range: HF
Modulations: All mode
Sensitivity: 50 µV for 1" vertical deflection at full gain
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: 350 kHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: ?
Modulations: All mode
RF-output: ?

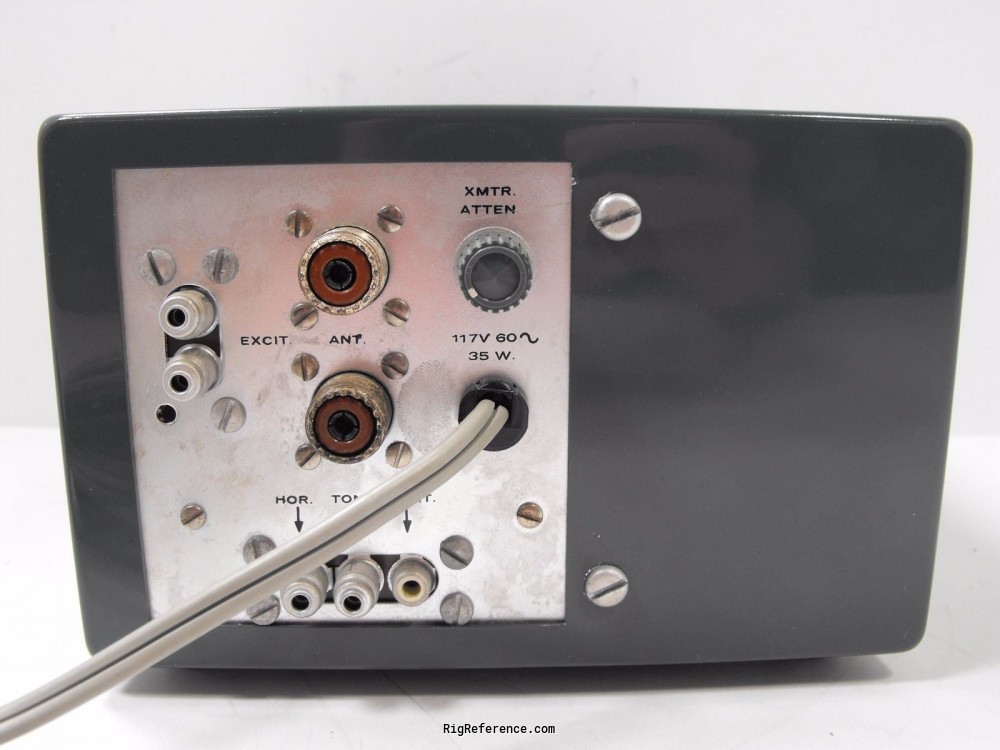

Connections

Antenna: RCA (Tulip)
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: 40 W max
TX: ?

Physical

Dimensions (w×h×d): 133 × 187 × 280 mm (5.24 × 7.36 × 11.02 in)
Weight: 3.85 kg (8.5 lbs)
Form factor: Base Station
Manufactured: Between 196x and 196x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6234
MPN: HEATHKIT-HO-000013

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HO-13. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
