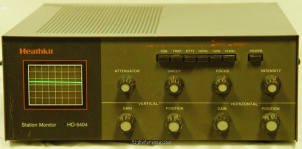

Last Station Scope made by Heathkit. Similar looks as the Heathkit HW-5400. All solid-state, except for the CRT display.
RF-power limits:
* Exciter input: 10-200 W
* Antenna input: 10-1000 W

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
?
Tuning steps
?

Frequency range

Range
1.8-54 MHz

Connections

Antenna
SO-239
Impedance
50/75Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
22 W max
TX
?

Physical

Manufactured
Between 1985 and 198x in USA
Dimensions (w×h×d)
286 × 111 × 308 mm (11.26 × 4.37 × 12.13 in)
Weight
4.80 kg (10.6 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
HEATHKIT-HO-005404

Manuals, diagrams and brochures

No documents available for this particular model.
