Heathkit HO-5404 Station Monitor

  Add a review   View all reviews (0)   Add to my shack

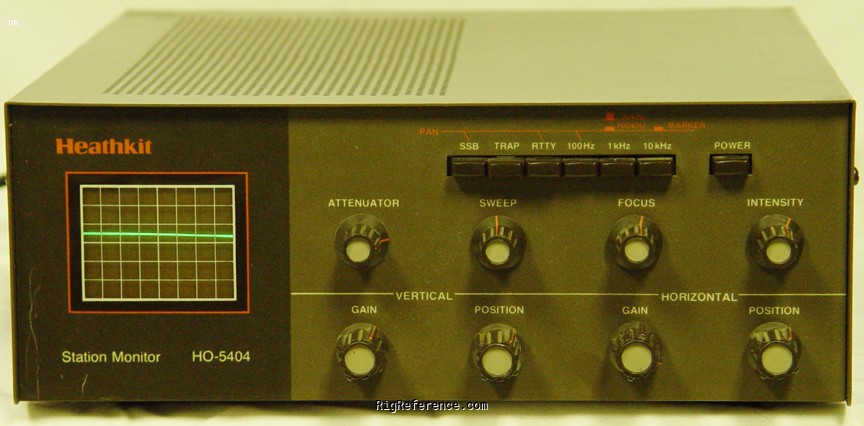

Last Station Scope made by Heathkit. Similar looks as the Heathkit HW-5400. All solid-state, except for the CRT display.
RF-power limits:
* Exciter input: 10-200 W
* Antenna input: 10-1000 W

Frequency range

RX-range
1.8-54 MHz
TX-range
-
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Stability
-
Tuning steps
-
Filters
-

Find the Heathkit HO-5404 on ebay

Receiver

Modulations
All mode
Sensitivity
1/4" vertical deflection at 10 W (80-6m)
3/4" vertical deflection at 100 W (80-6m)
1/4" vertical deflection at 100 W (160m)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
All mode
RF-Output
-

Connections

Antenna
SO-239
Impedance
50/75Ω

Electrical

Power requirements
Mains
Current drain RX
22 W max
TX
-

Physical

Dimensions (w×h×d)
286 × 111 × 308 mm (11.26 × 4.37 × 12.13 in)
Weight
4.80 kg (10.6 lbs)
Form factor
Base Station
Manufactured
Between 1985 and 198x in USA

Other features

Memories
-
Usage
Amateur / Ham radio operators
