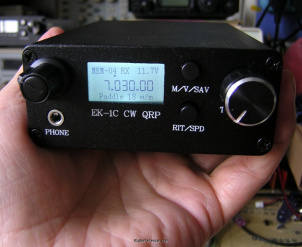

Youkits EK-1C

General characteristics

HAM bands

40m  30m (WARC)  20m  6m

Frequency stability

?

Tuning steps

?

Memories

16 channels in 1 bank(s)

Receiver

RX-range

5.9-16 MHz

Modulations

CW

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

IF-DDS: 60 MHz

Image rejection

?

Audio output

?

Transmitter

TX-range

7.0-7.3 / 10.1-10.15 / 14.0-14.35 MHz

Modulations

CW

RF-output

5 W @ 13.8 V

Connections

Antenna

BNC

Impedance

?

Other

-

Electrical

Power requirements

9-16 V DC

Current drain RX

70 mA

TX

900 mA

Physical

Dimensions (w×h×d)

88 × 38 × 124 mm (3.46 × 1.50 × 4.88 in)

Weight

280 gr (9.9 oz)

Form factor

Mobile

Manufactured

Between 201x and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

Sidetone: 700Hz
Keyer: 5-40 wpm adjustable
Auto scan function
LCD display with backlight

Accessories

-

RigReference ID

6246

MPN

YOUKITS-EK-000001C

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits EK-1C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Youkits EK-1C in Good condition is around:

• USD 142
