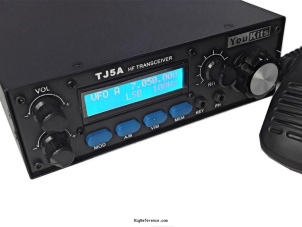

Youkits TJ5A

General characteristics

HAM bands

80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)

Frequency stability

0.6 µV (10 dB S/N)

Tuning steps

10 / 100 Hz / 1 / 10 / 100 kHz

Memories

40 channels in 1 bank(s)

Receiver

RX-range

2-30 MHz

Modulations

CW   USB   LSB

Sensitivity

0.3 µV

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

9 MHz

Image rejection

?

Audio output

Large built-in speaker

Transmitter

TX-range

3.5-4 / 5.3305-5.4035 / 7.0-7.3 / 10.1-10.15 / 14.0-14.35 / 18.068-18.168 / 21.0-21.45 / 24.89-24.99

Modulations

CW   USB   LSB

RF-output

SSB: 0.3-20 W, CW: 0.3-10 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-12.6 V DC

Current drain RX

320 mA max

TX

2.7 A max

Physical

Dimensions (w×h×d)

180 × 58 × 200 mm (7.09 × 2.28 × 7.87 in)

Weight

1.50 kg (3.3 lbs)

Form factor

Kit

Manufactured

Between 201x and 201x in Canada

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6247

MPN

YOUKITS-TJ000005A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits TJ5A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Youkits TJ5A in Good condition is around:

• USD 286
