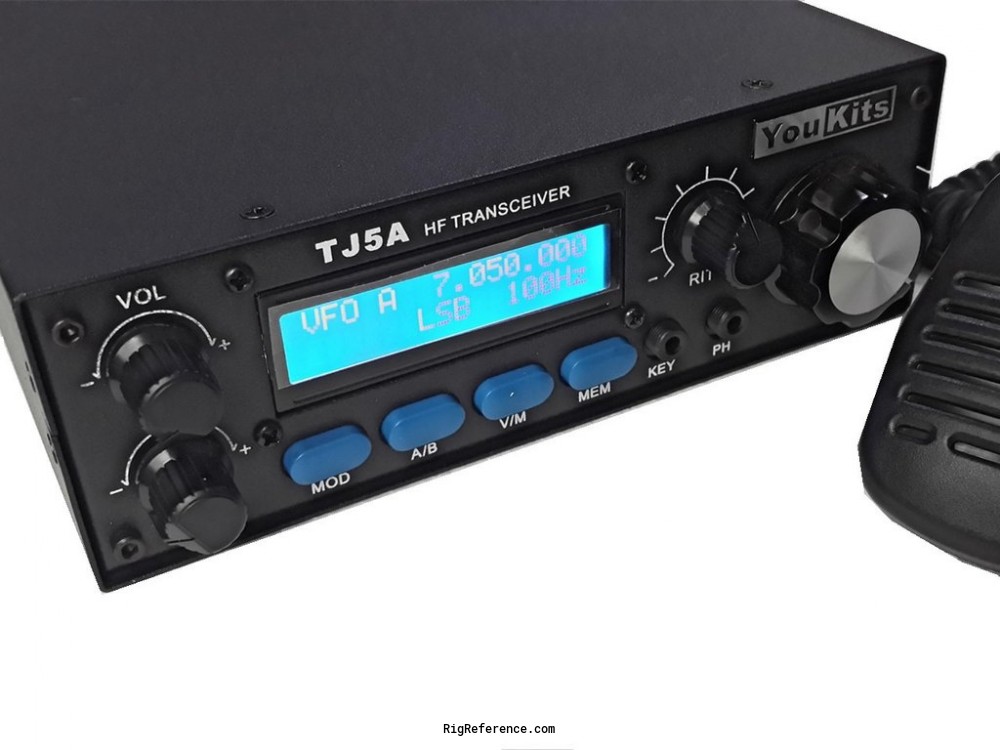

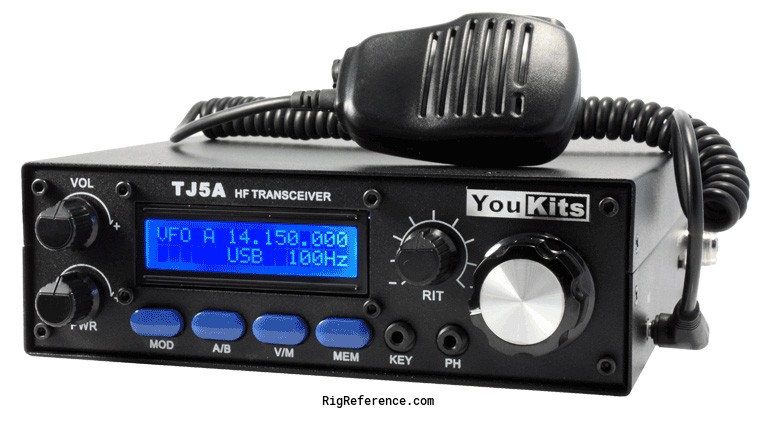

The Youkits TJ5A is a high sensibility, high-performance portable multi-band SSB/CW transceiver, used with DDS as LO, offering wide frequency coverage and fine tuning rate. A signal of 0.1 µV is discernible with this transceiver. The Doubly Balanced Diode Ring Mixer makes strong signal handling capability possible.

General characteristics

HAM bands
80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)
Frequency stability
0.6 µV (10 dB S/N)
Tuning steps
10 / 100 Hz / 1 / 10 / 100 kHz
Memories
40 channels in 1 bank(s)

Receiver

RX-range
2-30 MHz
Modulations
CW   USB   LSB
Sensitivity
0.3 µV
Selectivity
?
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
9 MHz
Image rejection
?
Audio output
Large built-in speaker

Transmitter

TX-range
3.5-4 / 5.3305-5.4035 / 7.0-7.3 / 10.1-10.15 / 14.0-14.35 / 18.068-18.168 / 21.0-21.45 / 24.89-24.99
Modulations
CW   USB   LSB
RF-output
SSB: 0.3-20 W, CW: 0.3-10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12-12.6 V DC
Current drain RX
320 mA max
TX
2.7 A max

Physical

Dimensions (w×h×d)
180 × 58 × 200 mm (7.09 × 2.28 × 7.87 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Kit
Manufactured
Between 201x and 201x in Canada

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6247
MPN
YOUKITS-TJ000005A

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits TJ5A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Youkits TJ5A is around:

  • USD 342.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2017 USD 380.00 New / Mint RigReference
