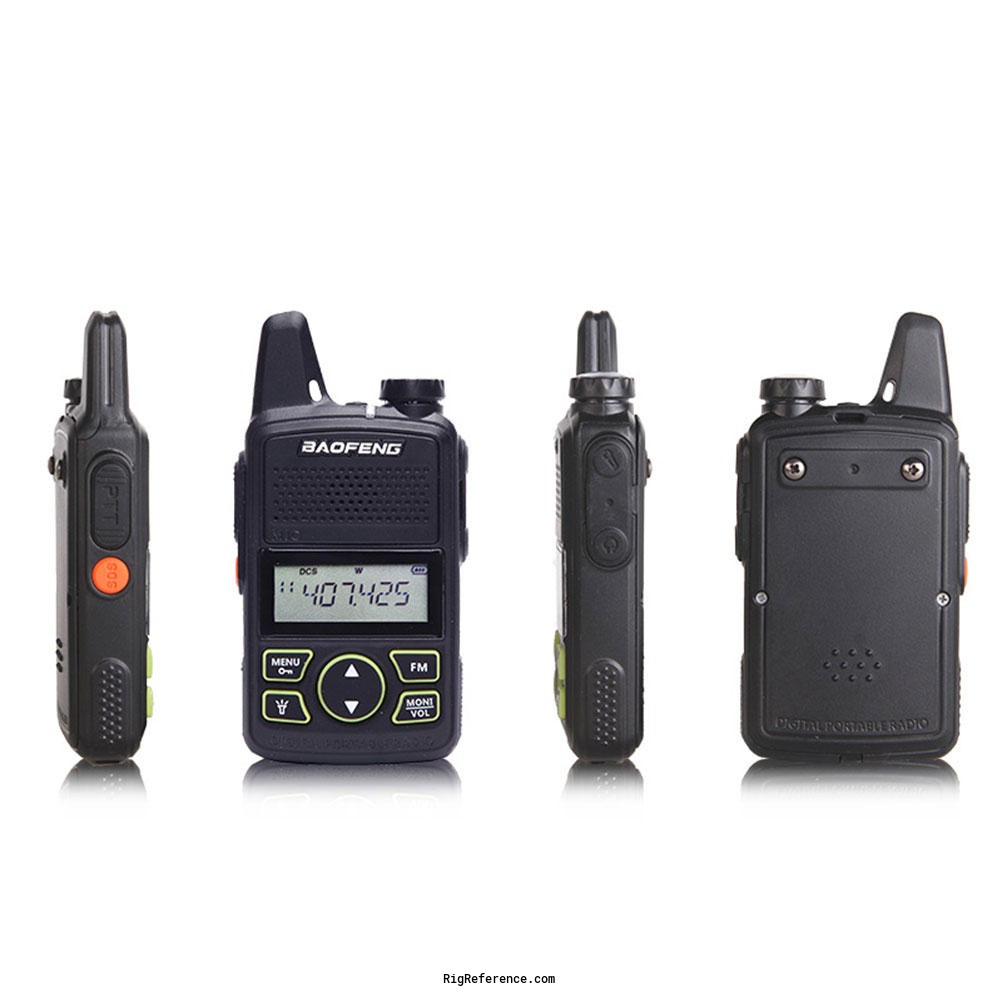

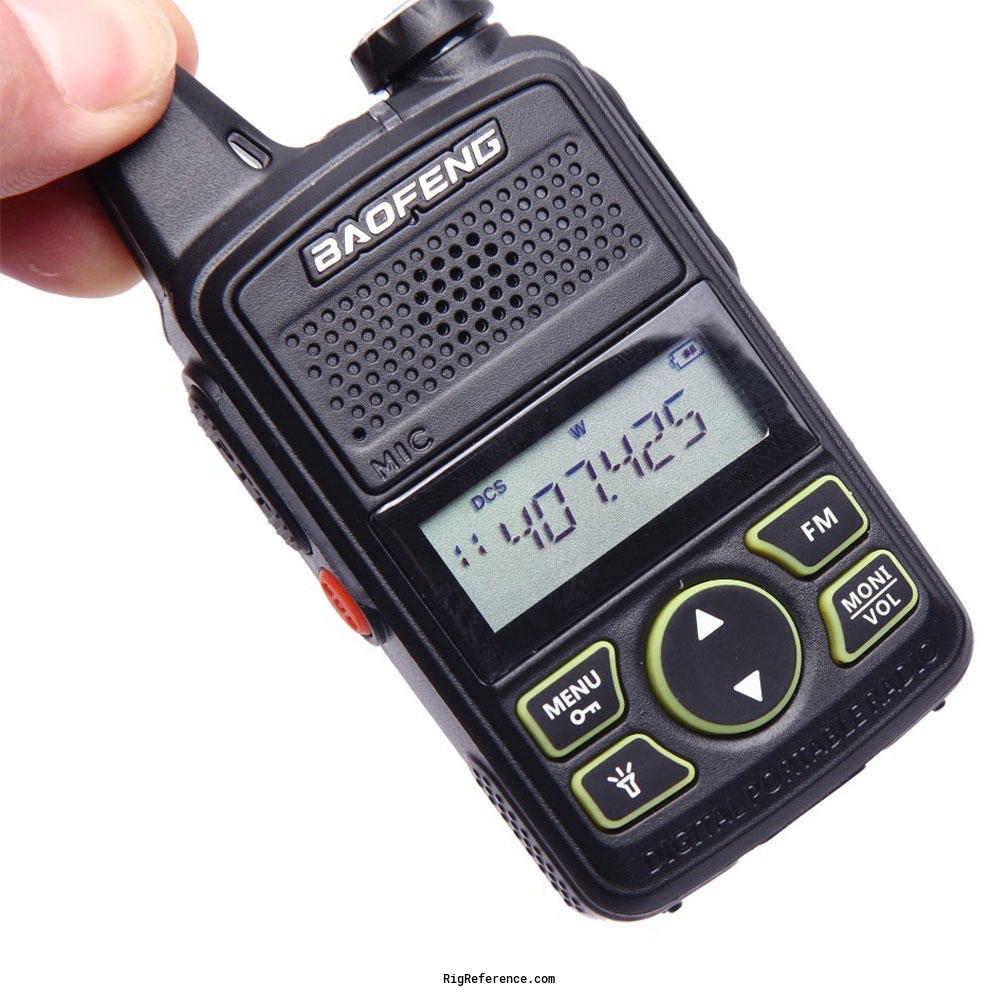

Baofeng BF-T1

Compact PMR446 Transceiver

View all reviews (2) Add a review Add to my shack



Login or Register to upload images

Find Baofeng BF-T1 rigs and spare parts on eBay Find the Baofeng BF-T1 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
446 MHz
TX-range
446 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
0.5-1 W

Connections

Antenna
Proprietary
Impedance
50Ω

Electrical

Power requirements
3.7V 1500mah Li-ion Battery
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
120 gr (4.2 oz)
Form factor
Handheld
Manufactured
Between 2017 and 201x in China
MPN
BAOFENG-BF-T000001

Other features

Memories
20 channels in 1 bank(s)
Usage
Private Mobile Radio, 446 MHz
Features + options
LED Flashlight
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Baofeng BF-T1 user manuals on eBay

Reviews & stories

A nice micro-sized UHF transceiver for under $20

Baofeng BF-T1, Compact PMR446 Transceiver

I bought two of these because they have a fixed antenna and are about the size of a credit card. The range is not super great, but that is to be expected. If you have a 70 cm repeater close by, then these radios work great. They are not front panel programmable. You have to use the Chirp programming software. They also don't have alphanumeric channel memories and only store the channel frequency. The minimum volume setting is a little too loud, but what do you really expect for a $20 radio. If you buy the radio by itself it is only about $16, but that is without a programming cable. Make sure you get the USB programming cable with the radio. For a $20 radio, this thing is excellent!

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2019
USD 20.00

Does work on 2m, too!

Baofeng BF-T1, Compact PMR446 Transceiver

They came in quite cheap from some chinese website. I did some research in advance and there was an OM successfully using his BF T1 with a 2m repeater. They might kick some butt when having a rig in your car which does cross-repeat and you're working outside the car where the BF T1's antenna simply wouldn't cut it ;-)

I successfully tried it on 2m working dm0max. This repeater has offset RX stations listening on 2m. One of them is like 2,5 kilometers away from my QTH. That's why 1W RF power is more than enough.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2018
EUR 9.00

What's it worth

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Baofeng BF-T1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Baofeng BF-T1 might be around:

  • USD 19.00
  • EUR 8.00
Year Historic price Condition Submitted by
2017 USD 14.00 New / Mint RigReference
2017 EUR 12.00 New / Mint RigReference
2018 EUR 9.00 New / Mint Lukas Thorwald Hey
2018 EUR 9.00 New / Mint Lukas Thorwald Hey
2019 USD 20.00 New / Mint radioericwilson
