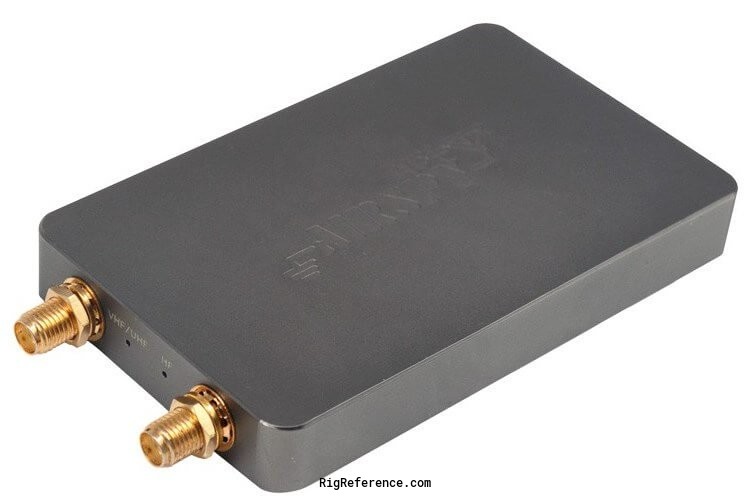

The Airspy HF+ is a headless HF/VHF SDR receiver. It covers 0.009-31 MHz and 60-260 MHz frequency ranges with a frequency stability of 0.5 ppm and 1 PPB tuning steps. The receiver system uses a Digital Down Converter and is software defined. It features tracking RF filters and 4 programmable GPIO's. Power requirements are 5V DC (USB port).
General characteristics
- HAM bands
- ?
- Frequency stability
- 0.5 p.p.m.
- Tuning steps
- 1 PPB
- Memories
- ?
Receiver
- RX-range
- 0.009-31 / 60-260 MHz
- Modulations
- All mode
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- Tracking RF filters
- Receiver system
- Digital Down Converter, software defined
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 5 V DC (USB port)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2017 and 20xx in France
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 4 programmable GPIO's
- Accessories
- -
- RigReference ID
- 6275
- MPN
- AIRSPY-HF+
