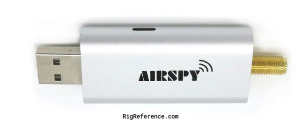

Airspy Mini VHF/UHF SDR Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Budget receiver, based on similar technology as the Airspy R2.

Frequency range

RX-range
24-1800 MHz
TX-range
-
HAM bands
-
Stability
0.5 p.p.m.
Tuning steps
1 PPB
Filters
Tracking RF filters

Receiver

Modulations
All mode
Sensitivity
-
Selectivity
-
Receiver system
Digital Down Converter, software defined
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
All mode
RF-Output
-

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
5 V DC (USB port)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Headless
Manufactured
Between 201x and 20xx in France
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
Up to 6 MHz panoramic spectrum view
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Airspy Mini. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Airspy Mini might be around:

  • USD 98.00
Price Condition Year User
USD 99.00 New / Mint 2017 RigReference
