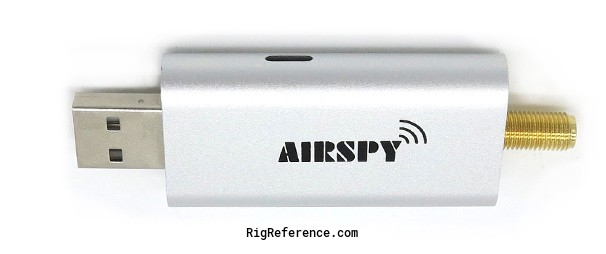

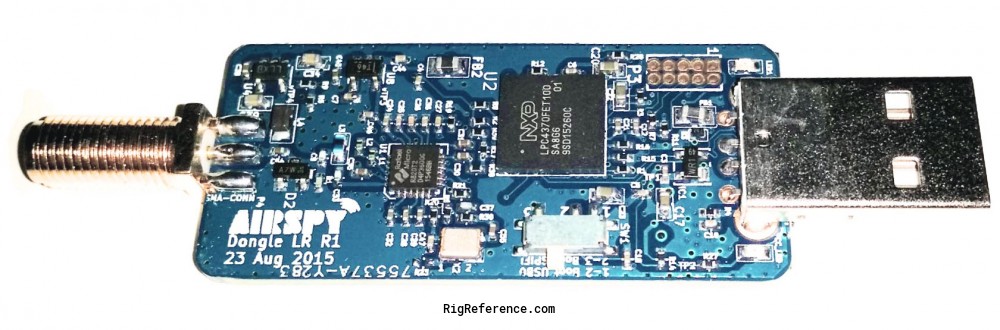

Budget receiver, based on similar technology as the Airspy R2.

Frequency range

RX-range
24-1800 MHz
TX-range
-
HAM bands
?
Stability
0.5 p.p.m.
Tuning steps
1 PPB
Filters
Tracking RF filters

Receiver

Modulations
All mode
Sensitivity
?
Selectivity
?
Receiver system
Digital Down Converter, software defined
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
?

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
5 V DC (USB port)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Headless
Manufactured
Between 201x and 20xx in France
MPN
AIRSPY-MINI

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
Up to 6 MHz panoramic spectrum view
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Airspy Mini user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

What's it worth

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Airspy Mini. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Airspy Mini might be around:

  • USD 98.00
Year Historic price Condition Submitted by
2017 USD 99.00 New / Mint RigReference
