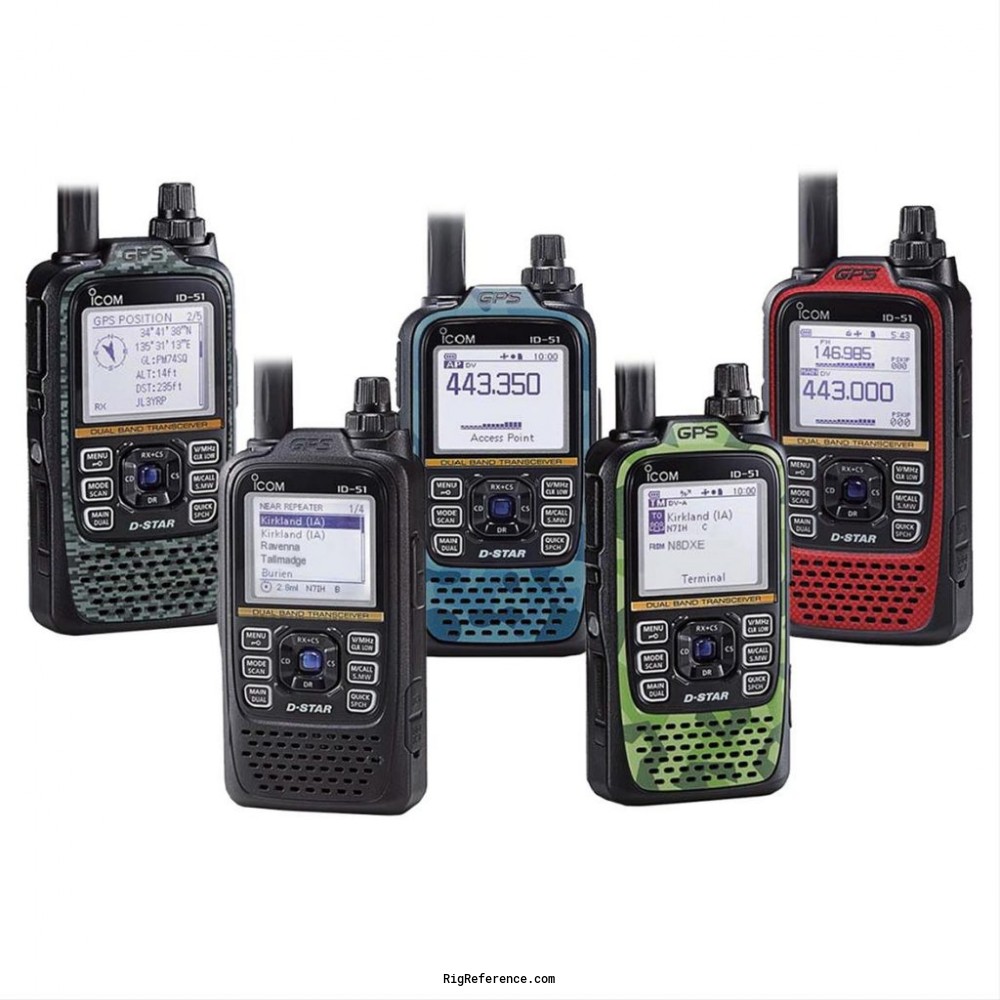

ICOM ID-51A Plus2

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Improved version of the ICOM ID-51A / ICOM ID-51E.

Frequency range

RX-range
0.52-1.710 / 76-108 / 108-174 / 380-479 MHz
TX-range
144-148 / 430-450 MHz
HAM bands
70cm
Stability
± 2.5 p.p.m. @ 25 °C
Tuning steps
5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz
Filters
?

Receiver

Modulations
AM   FM   N-FM   W-FM   GMSK   DV
Sensitivity
FM/N-FM: 0.18 µV (12 dB SINAD)
DV: 0.28 µV (1% BER)
Selectivity
FM: 55 dB
N-FM/DV: 50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.355 / 61.655 MHz
2nd: 450 kHz
Image rejection
≥ 60 dB
Audio output
?

Transmitter

Modulations
FM   N-FM   GMSK   DV
RF-Output
0.1 / 0.5 / 2.5 / 5 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
5.5-7.4 V DC (Alkaline or battery pack)10-16 V DC external
Current drain RX
200-450 mA
TX
2.5 A max

Physical

Dimensions (w×h×d)
58 × 105 × 26 mm (2.28 × 4.13 × 1.02 in) without knob and antenna
Weight
255 gr (9.0 oz) with BP-271 and antenna
Form factor
Handheld
Manufactured
Between 2016 and 20xx in Japan
MPN
ICOM-ID-000051A-PLUS2

Other features

Memories
1304 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
D-Star concept
Built-in GPS with logging
CTCSS / DTCS
Micro SD card slot
128×104 dot-matrix display
Voice synthesizer
Voice memory
Voltage indicator
IPX7 waterproof
Twin RX
Li-Ion battery pack
CI-V interface
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM ID-51A Plus2 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM ID-51A Plus2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM ID-51A Plus2 is around:

  • USD 499.00
Year Historic price Condition Submitted by
2019 USD 500.00 New / Mint nd3q
