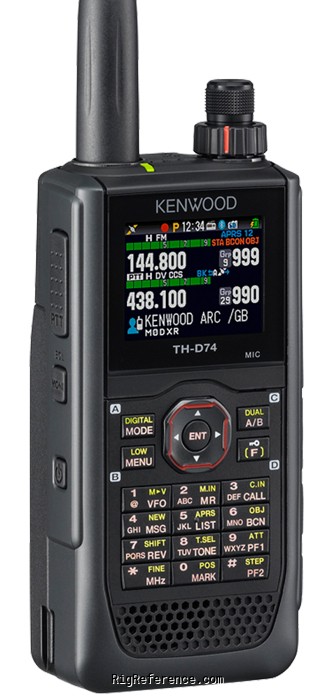

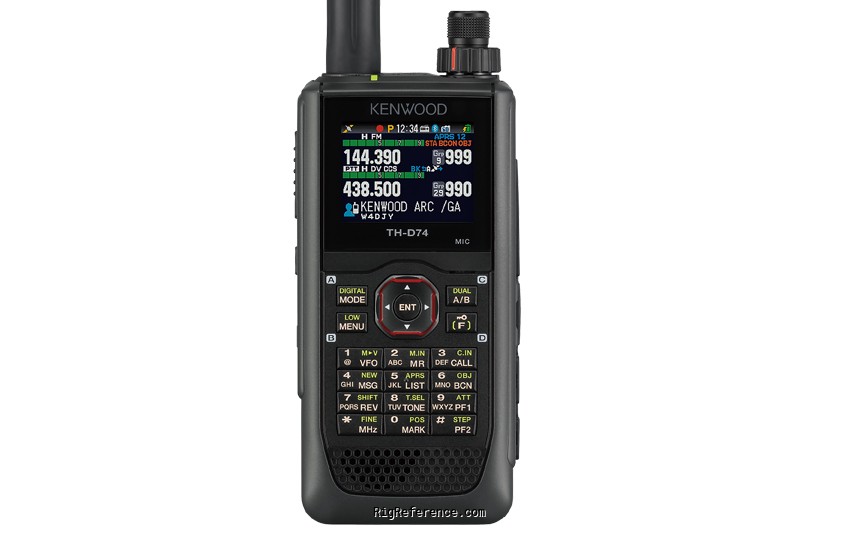

Kenwood TH-D74

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

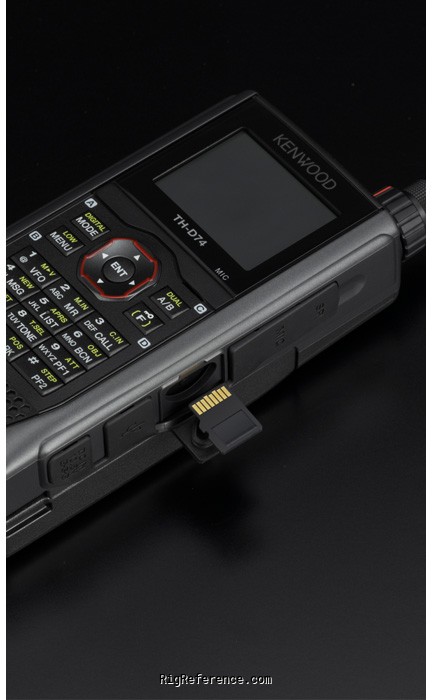

This Dual Band Amateur radio support analog and digital features like D-STAR and APRS. Featuring colour transflective TFT display that offers excellent visibility in day or night. Plus, built-in GPS and Bluetooth support, as well as Micro USB and microSD/SDHC this radio is ready to harness the exciting developments in radio communications.

Frequency range

RX-range
0.1-253 / 255-262 / 266-271 / 275-380 / 382-412 / 415-524 MHz
TX-range
2 m / 70 cm
HAM bands
2m  70cm
Stability
?
Tuning steps
20 Hz
Filters
?

Receiver

Modulations
AM   FM   N-FM   W-FM   CW   USB   LSB   D-STAR
Sensitivity
AM (10 dB S/N)
0.3-0.52 MHz: 4 µV
0.52-1.8 MHz: 1.59 µV
1.8-54 MHz: 0.63 µV
54-76 MHz: 1.12 µV
118-174 MHz: 0.5 µV
200-250 MHz: 0.63 µV
382-412 MHz: 1.12 µV
415-524 MHz: 1.12 µV
FM (12 dB SINAD)
28-54 MHz: 0.32 µV
54-76 MHz: 0.56 µV
118-144 MHz: 0.36 µV
144-148 MHz: 0.18 µV (Band A), 0.19 µV (Band B)
148-175 MHz: 0.36 µV
200-222 MHz: 0.36 µV
225-250 MHz: 0.36 µV
382-400 MHz: 0.5 µV
400-412 MHz: 0.36 µV
415-430 MHz: 0.36 µV
430-450 MHz: 0.18 µV (Band A), 0.2 µV (Band B)
450-490 MHz: 0.36 µV
490-524 MHz: 0.63 µV
N-FM (12 dB SINAD)
144-148 MHz: 0.22 µV (Band A), 0.24 µV (Band B)
430-450 MHz: 0.22 µV (Band A), 0.25 µV (Band B)
W-FM (12 dB SINAD)
76-95 MHz: 1.59 µV
95-108 MHz: 2 µV
SSB (10 dB S/N)
1.8-54 MHz: 0.4 µV
54-76 MHz: 0.79 µV
144-148 MHz: 0.16 µV
222-225 MHz: 0.2 µV
430-450 MHz: 0.16 µV
DV (PN9/GMSK, 4.8 kbps, BER 1%)
144-148 MHz: 0.2 µV
430-450 MHz: 0.2 µV
Selectivity
FM: 12 kHz (-6 dB), 30 kHz (-50 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
400 mW at 10% distortion / 8 ohms (at 7.4 VDC)

Transmitter

Modulations
FM   N-FM   D-STAR
RF-Output
50 mW ... 5 W

Connections

Antenna

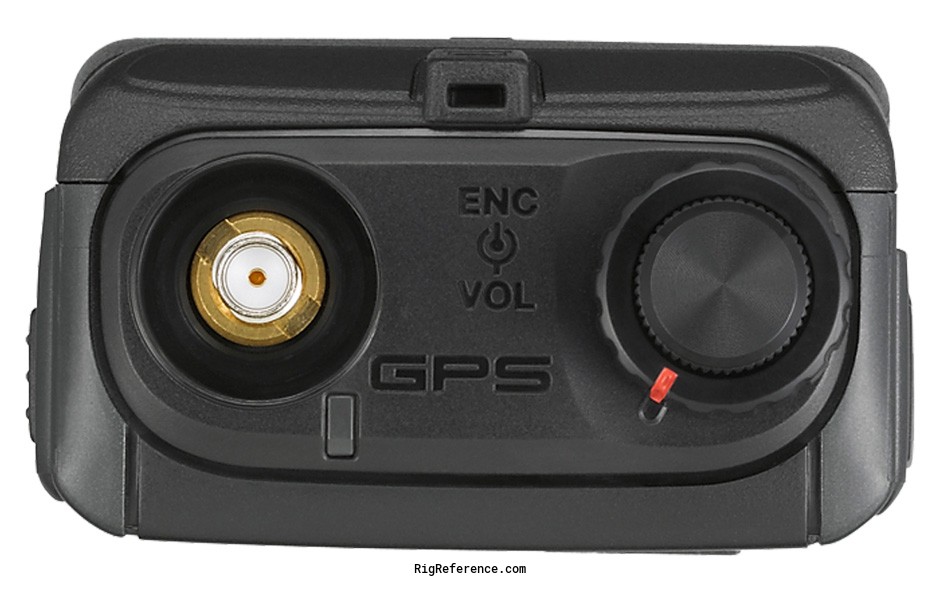

SMA
Impedance
50Ω

Electrical

Power requirements
6-9.6 V DC (battery) or 11-15.9 V DC (external)
Current drain RX
48-310 mA
TX
0.4-2 A

Physical

Dimensions (w×h×d)
56 × 120 × 34 mm (2.20 × 4.72 × 1.34 in) with KNB-75L
Weight
345 gr (12.2 oz)
Form factor
Handheld
Manufactured
Between 2016 and 20xx in Japan
MPN
KENWOOD-TH-D000074

Other features

Memories
1000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS/PL, DCS, Micro-SD card, Micro-USB, Bluetooth, Built-in GPS and APRS.
Built-in bar antenna for 0.1-10 MHz RX. Color TFT. Audio equalizer. Hi-performance DSP.
