General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.6-30 MHz in 5 bands
Modulations
CW
Sensitivity
≥ 2 µV
Selectivity
5 kHz
300 Hz with optional crystal filter
Filters
?
Receiver system
Superheterodyne
IF-frequencies
450 kHz
Image rejection
?
Audio output
3 W

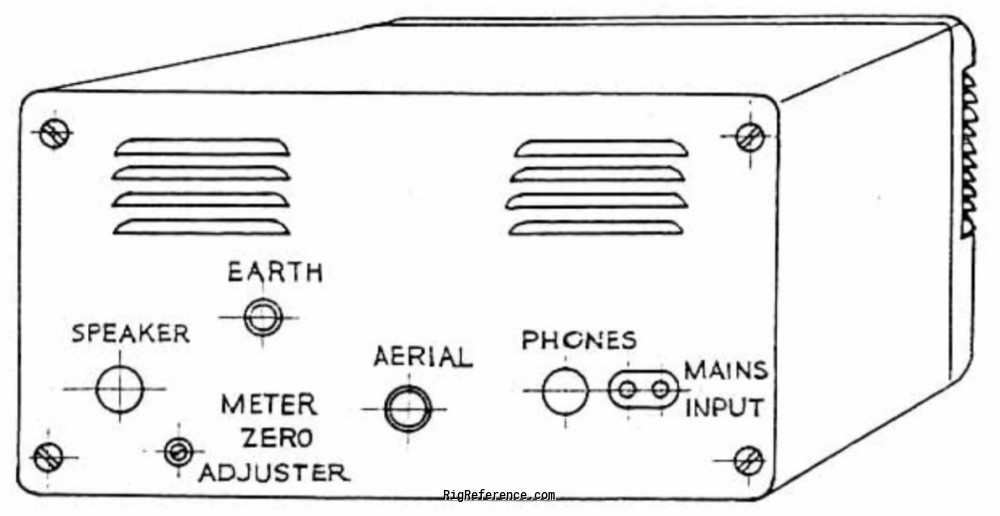

Connections

Antenna
-
Impedance
70Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
65 W
TX
-

Physical

Dimensions (w×h×d)
426 × 222 × 254 mm (16.77 × 8.74 × 10.00 in)
Weight
?
Form factor
Base Station
Manufactured
Between 1946 and 194x in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
Noise limiter
S-meter
Accessories
-
RigReference ID
6349
MPN
EDDYSTONE-000504

Manuals, diagrams and brochures

Eddystone 504 Service Information PDF - 2.90 MB, submitted by RigReference
