Eddystone 504

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

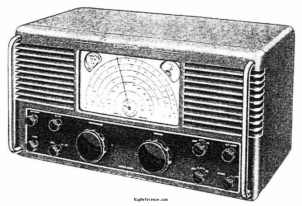

The Eddystone 504 is a desktop shortwave receiver covering 0.6-30 MHz in 5 bands. It employs a superheterodyne receiver system with a 450 kHz IF frequency and features a noise limiter and S-meter. The audio output is 3 W. Dimensions are 222 × 426 × 254 mm. Power requirements are mains, consuming 65 W during reception.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.6-30 MHz in 5 bands
Modulations: CW
Sensitivity: ≥ 2 µV
Selectivity: 5 kHz
300 Hz with optional crystal filter
Filters: ?
Receiver system: Superheterodyne
IF-frequencies: 450 kHz
Image rejection: ?
Audio output: 3 W

Connections

Antenna: -
Impedance: 70Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: 65 W
TX: -

Physical

Dimensions (w×h×d): 426 × 222 × 254 mm (16.77 × 8.74 × 10.00 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 1946 and 194x in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: Noise limiter
S-meter
Accessories: -
RigReference ID: 6349
MPN: EDDYSTONE-000504

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone 504 Service Information PDF - 2.90 MB, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone 504. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Eddystone 504 is around:

USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.
