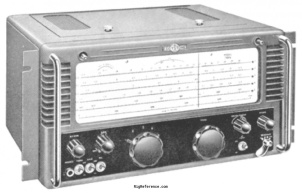

Eddystone 730/6

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The Eddystone 730/6 is a standard Eddystone 730/4 with facilities for crystal control of the Local Oscillator Stage. This model does not have a range indicator lamps as the space previously occupied by the Range Lamp Switch is now taken up by part of the Crystal Selector Switch mechanism.

Frequency range

RX-range
0.48-30 MHz in 5 bands
TX-range
-
HAM bands
?
Stability
Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up
Tuning steps
?
Filters
500 Hz switchable crystal filter

Receiver

Modulations
AM   CW
Sensitivity
AM: 5 µV
CM 1-2 µV
Selectivity
1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)
Receiver system
Superheterodyne
IF-frequencies
450 kHz
Image rejection
?
Audio output
1 W

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
70/80Ω

Electrical

Power requirements
Mains (100-125 or 200-250 V AC) or external PSU
Current drain RX
80 W
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1959 and 196x in Great Britain
MPN
EDDYSTONE-000730/6

Other features

Memories
?
Usage
Military communication
