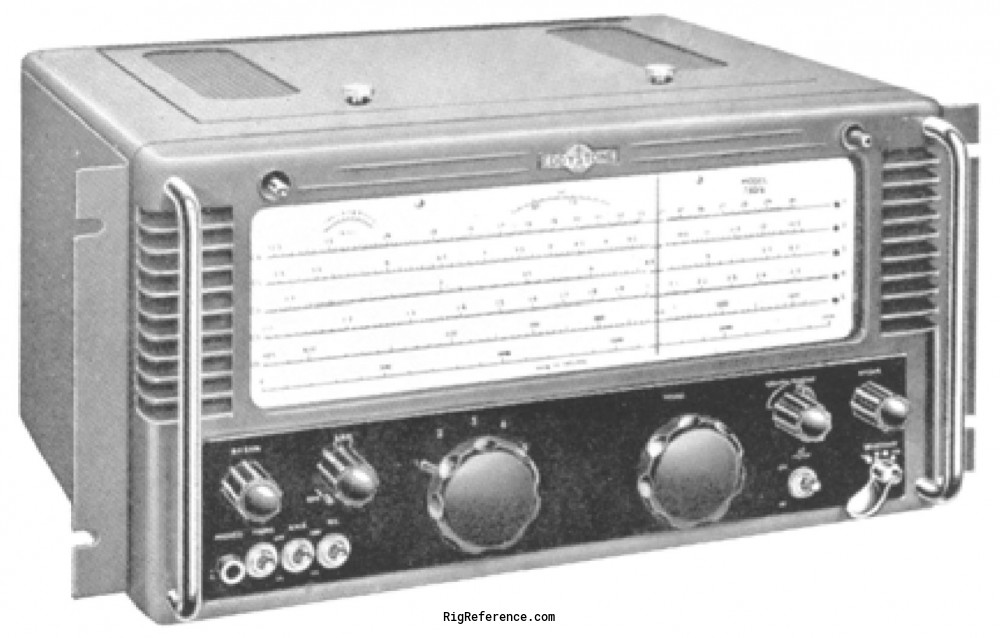

The Eddystone 730/6 is a standard Eddystone 730/4 with facilities for crystal control of the Local Oscillator Stage. This model does not have a range indicator lamps as the space previously occupied by the Range Lamp Switch is now taken up by part of the Crystal Selector Switch mechanism.
General characteristics
- HAM bands
- ?
- Frequency stability
- Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.48-30 MHz in 5 bands
- Modulations
- AM CW
- Sensitivity
- AM: 5 µV
CM 1-2 µV - Selectivity
- 1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)
- Filters
- 500 Hz switchable crystal filter
- Receiver system
- Superheterodyne
- IF-frequencies
- 450 kHz
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- -
- Impedance
- 70/80Ω
- Other
- -
Electrical
- Power requirements
- Mains (100-125 or 200-250 V AC) or external PSU
- Current drain RX
- 80 W
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1959 and 196x in Great Britain
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6357
- MPN
- EDDYSTONE-000730/6
