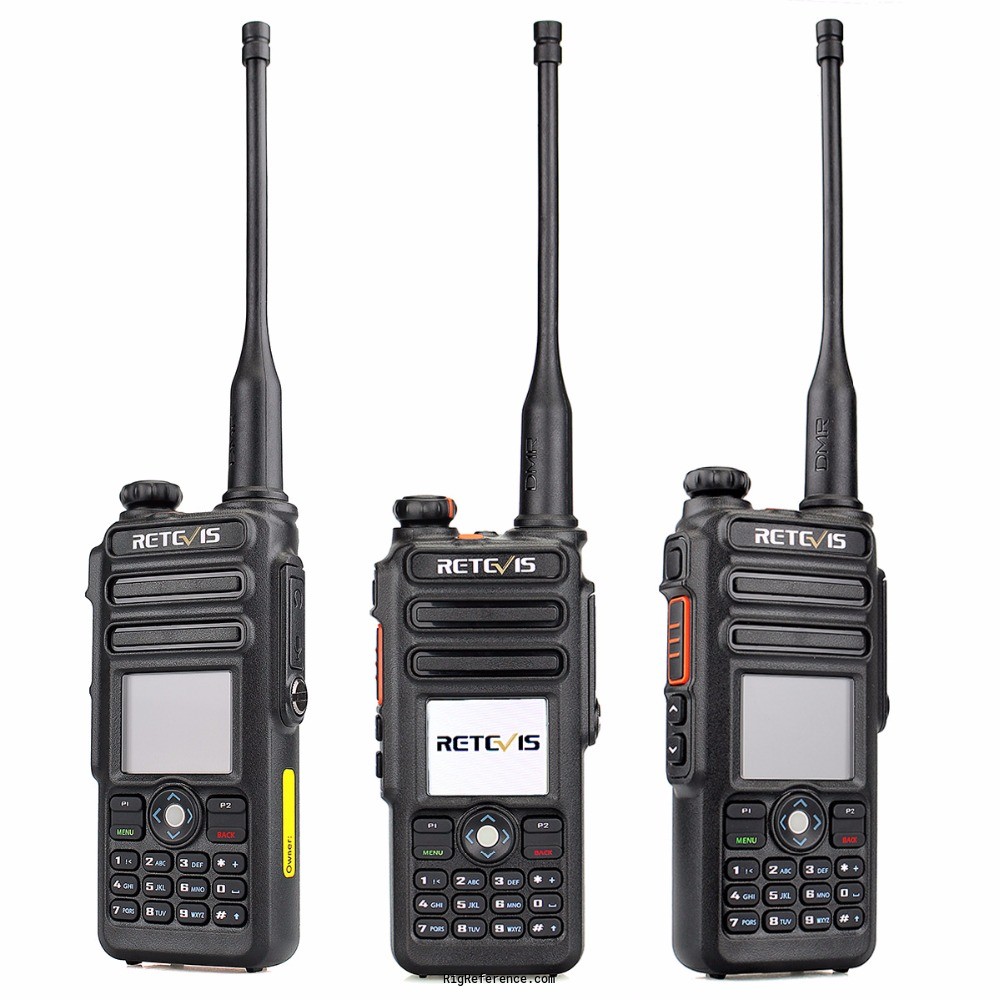

The Retevis RT82 is a handheld transceiver covering 136-174 / 400-480 MHz. It has a frequency stability of ± 1 p.p.m. and tuning steps of 12.5 kHz. The RF output is VHF: 5 W, UHF: 4 W and the audio output is 1 W. It features 3000 memory channels in 1 bank. It has a 7.4 V DC 2200 mAh Li-ion power requirement. Current drain is 180 mA (RX) and 0.9-1.6 A (TX). The RT82 weighs 300 gr with battery. Dimensions are 37 × 132 × 64 mm. It features CTCSS/DCS, optional GPS, encryption function and is compatible with Motorola Tier Ⅰ&Ⅱ. It complies with digital protocol ETSI TS 102 361-1,-2,-3 and has a color LCD.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 1 p.p.m.
- Tuning steps
- 12.5 kHz
- Memories
- 3000 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM DMR
- Sensitivity
- Analog: 0.2 μV @ 12dB SINAD
Digital: 0.25 μV (BER:5%) - Selectivity
- 11K0F3E @ 12.5KHz
14K0F3E @ 20KHz
16K0F3E @ 25KHz - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM DMR
- RF-output
- VHF: 5 W, UHF: 4 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC 2200 mAh Li-ion
- Current drain RX
- 180 mA
- TX
- 0.9-1.6 A
Physical
- Dimensions (w×h×d)
- 132 × 37 × 64 mm (5.20 × 1.46 × 2.52 in)
- Weight
- 300 gr (10.6 oz) with battery
- Form factor
- Handheld
- Manufactured
- Between 201x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67 Waterproof
CTCSS/DCS
Optional GPS
Encryption function
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with digital protocol ETSI TS 102 361-1,-2,-3
Color LCD - Accessories
- -
- RigReference ID
- 6369
- MPN
- RETEVIS-RT000082
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT82. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Retevis RT82 in Good condition is around:
- EUR 146
- USD 165
These estimates are based on the following prices:
