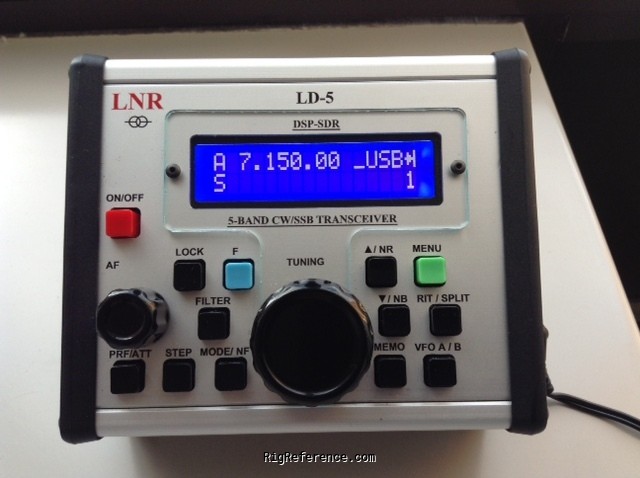

This powerful unit packs in a ton of features at an incredible value. This rig has a sleek design with a simple interface that you will want with you at all times. The new LD-5 also includes the updated FTDI chipset which replaces the legacy Prolific chipset. Just wait until you hear the amazing receive!

General characteristics

HAM bands
40m  30m (WARC)  20m  17m (WARC)  15m
Frequency stability
± 3 p.p.m. (Si570 defined) typical over 0-50 °C
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
7-22 MHz (1.8-7 MHz via mod)
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63   SSTV
Sensitivity
0.2 µV w/o preamp
Selectivity
CW: 50-1000 Hz
SSB: 250-3600 Hz
Filters
300 / 500 / 1.3 / 1.6 / 1.9 / 2.2 / 2.5 kHz (DSP)
Receiver system
Digital Direct Conversion / SDR
IF-frequencies
?
Image rejection
?
Audio output
8 ohms, .5 watts

Transmitter

TX-range
40-15 m
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63   SSTV
RF-output
3.5-8 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
10.5-13.8 V DC
Current drain RX
350 mA
TX
2 A max

Physical

Dimensions (w×h×d)
?
Weight
540 gr (1.2 lbs)
Form factor
Portable
Manufactured
Between 2014 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6377
MPN
LNR-PRECISION-LD-000005

Manuals, diagrams and brochures

LNR LD-5 Updated Manual PDF - 753.6 kB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used LNR Precision LD-5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the LNR Precision LD-5 is around:

  • USD 592.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 595.00 New / Mint RigReference
