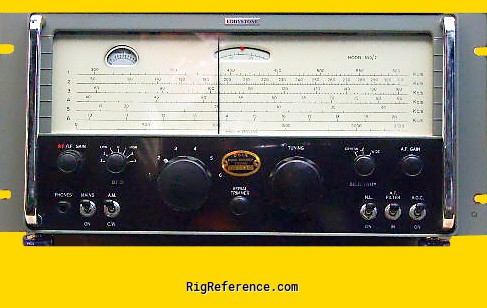

Eddystone 850/4 Desktop LF receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack


Image wanted



Login or Register to upload images

Frequency range

RX-range
10-600 kHz in 6 bands
TX-range
-
HAM bands
160m  80m  60m  2000m
Stability
Better that 200 Hz/hour after warm-up
Tuning steps
-
Filters
2 independent crystal filters + 1000 Hz audio filter

Receiver

Modulations
AM   CW
Sensitivity
≤ 5 µV for 15 dB S/N
Selectivity
120 Hz @ -6 dB
400 Hz @ -30 dB
Receiver system
Single conversion superheterodyne
IF-frequencies
720 kHz
Image rejection
≥ 75 dB
Audio output
Requires external speaker / headphones

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Clamps / screws
Impedance
75/300Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Great Britain
MPN

Other features

Memories
8 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Eddystone 850/4 Instruction Manual submitted by RigReference

Upload relevant documents

Show other documents.
