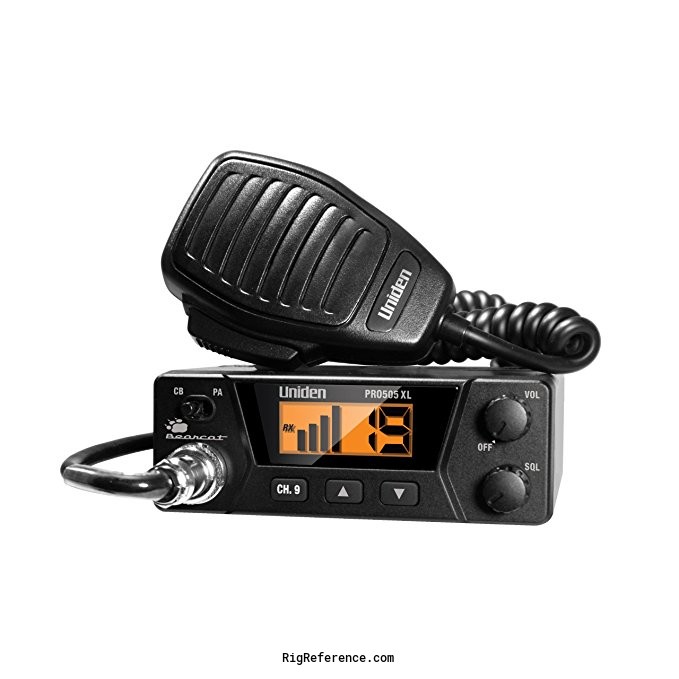

Despite the XL in the name, this is a rather small CB model, making it very suitable for mobile use.

General characteristics

HAM bands
11m (CB)
Frequency stability
± 0.005 %
Tuning steps
?

Receiver

RX-range
26.965 - 27.405 MHz
Modulations
AM
Sensitivity
0.8 μV for 10 dB; (S + N) /N typical (limit 1.6 μV)
Selectivity
6 dB @ 7kHz, 70 dB @ 10kHz typical
Filters
?
Receiver system
Double Conversion Superheterodyne, PLL
IF-frequencies
1st: 10.692 MHz
2nd: 450 kHz
Image rejection
65 dB
Audio output
3 W

Transmitter

TX-range
26.965 - 27.405 MHz
Modulations
AM
RF-output
4 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC nom. (+ or - ground)
Current drain RX
800 mA
TX
1.4 A max

Physical

Manufactured
Between 2012 and 201x
Dimensions (w×h×d)
152 × 58 × 327 mm (5.98 × 2.28 × 12.87 in)
Weight
?
Form factor
Mobile

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
?
Accessories
?
MPN
UNIDEN-BEARCAT-PRO000505XL

Manuals, diagrams and brochures

Uniden PRO550 XL Manual PDF - 1.02 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat PRO505XL. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat PRO505XL is around:

  • USD 27.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 28.00 New / Mint RigReference
