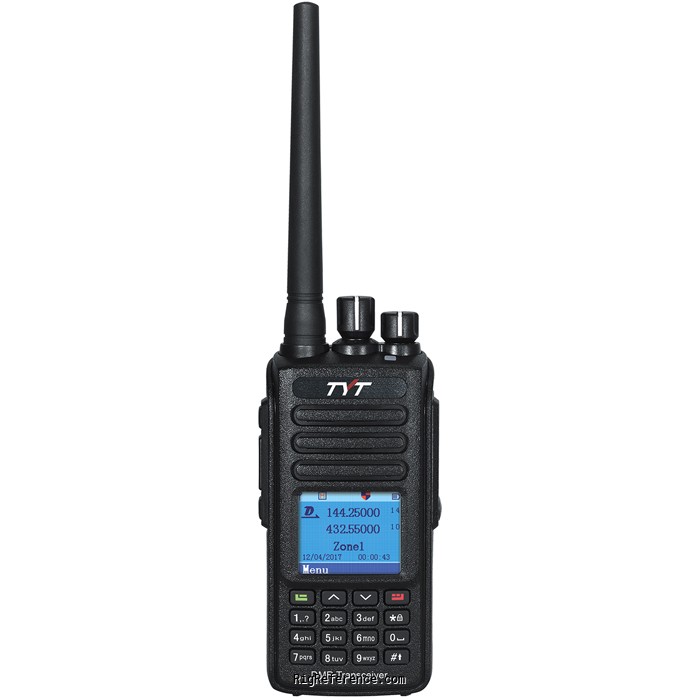

Very similar to the TYT UV-380. Expected to be available in April 2018 for around USD 149.-.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 1 p.p.m.
- Tuning steps
- 12.5 kHz
- Memories
- 3000 channels in 32 bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
- Modulations
- FM FSK DMR
- Sensitivity
- Analog
0.2 µV (12dB SINAD)
Digital
0.25 µV (BER 5%)
0.22 µV / -110dBm (BER 1%) - Selectivity
- ?
- Filters
- 12.5 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 84 dB
- Audio output
- ≤ 1000 mW @ 16Ω
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM FSK DMR
- RF-output
- 1 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC, 2000 mAh Li-ion
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 131 × 61 × 36 mm (5.16 × 2.40 × 1.42 in)
- Weight
- 258 gr (9.1 oz)
- Form factor
- Handheld
- Manufactured
- Between 2018 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67 dust/waterproof
Optional GPS
Color LCD
8 hours audio recording - Accessories
- -
- RigReference ID
- 6401
- MPN
- TYT-UV-000390
