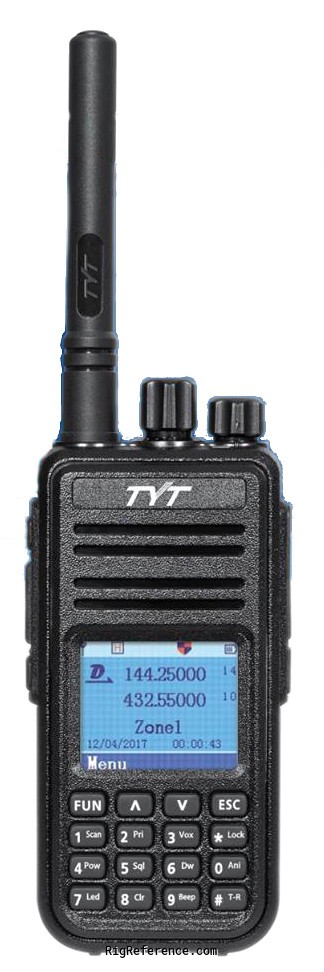

Similar to the TYT MD-380 but with support for digital modes added.
Expected to be on sale in April 2018 for around USD 149.-.

General characteristics

HAM bands
2m  70cm
Frequency stability
± 1 p.p.m.
Tuning steps
12.5 kHz

Receiver

RX-range
136-174 / 400-480 MHz
Modulations
FM   FSK   DMR
Sensitivity
Analog
0.2 µV (12dB SINAD)

Digital
0.25 µV (BER 5%)
0.22 µV / -110dBm (BER 1%)
Selectivity
?
Filters
12.5 kHz
Receiver system
?
IF-frequencies
?
Image rejection
84 dB
Audio output
≤ 1000 mW @ 16Ω

Transmitter

TX-range
136-174 / 400-480 MHz
Modulations
FM   FSK   DMR
RF-Output
1 / 5 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC, 2000 mAh Li-ion
Current drain RX
?
TX
?

Physical

Manufactured
Between 2018 and 20xx
Dimensions (w×h×d)
131 × 61 × 36 mm (5.16 × 2.40 × 1.42 in)
Weight
258 gr (9.1 oz)
Form factor
Handheld

Other features

Memories
3000 channels in 32 bank(s)
Usage
Amateur / Ham radio operators
Features + options
IP67
Optional GPS
Color LCD
8 hours audio recording
Accessories
?
MPN
TYT-UV-000380

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used TYT UV-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the TYT UV-380 is around:

  • USD 148.00

These estimates are based on the following prices: (see all 1 prices)

Year Historic price Condition Submitted by
2018 USD 149.00 New / Mint RigReference
