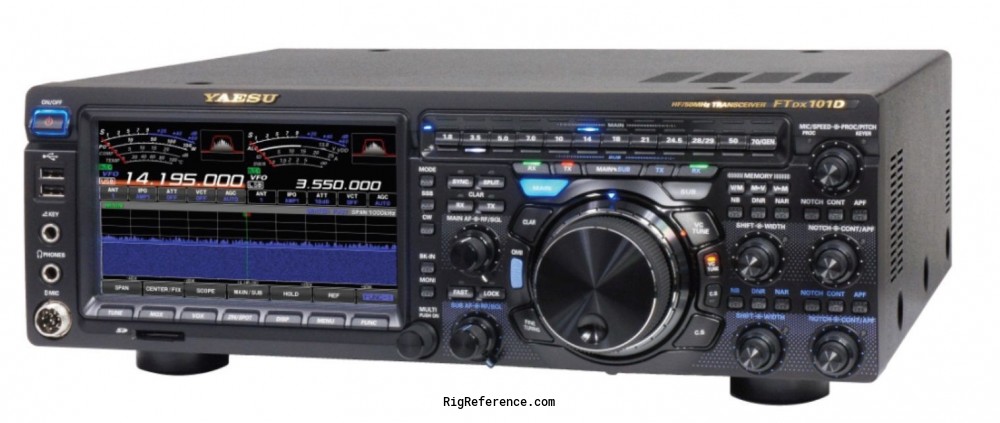

Yaesu's first SDR model. Twin RX.
There is also a 200 W version: Yaesu FTdx 101MP

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  4m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.03-60 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
SDR
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC / 50-54 MHz
EU version: 4 m (70 MHz)
Modulations
AM   FM   CW   USB   LSB
RF-output
100 W

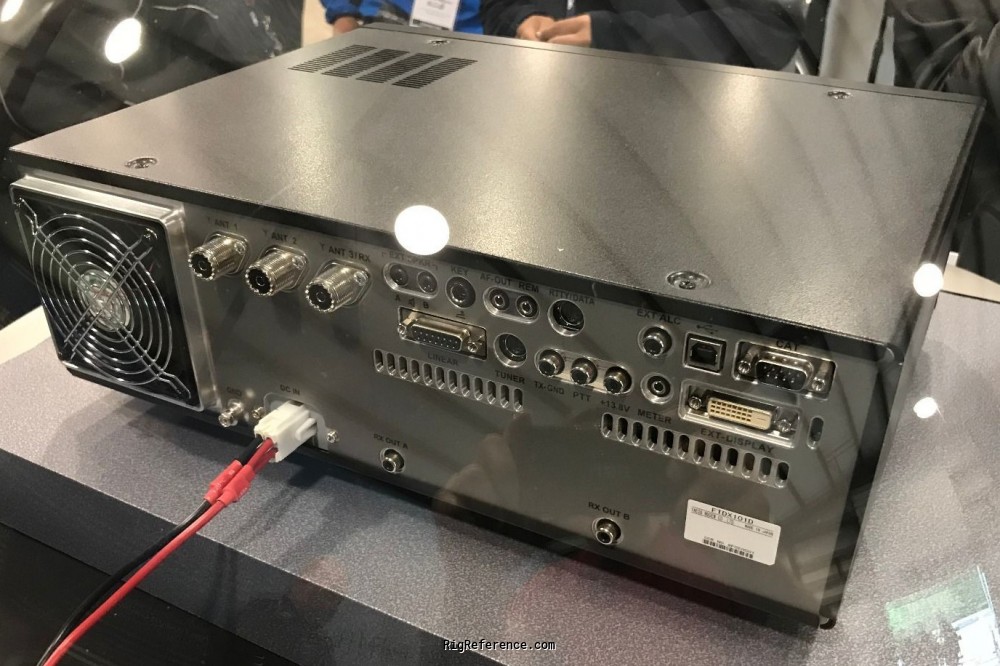

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 2018 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
DSP
Waterfall display
Color touch panel
Independent Main & Sub bands
Active Band Monitor
High-Q Tuning Front End
ATU
USB-ports
Accessories
-
RigReference ID
6404
MPN
YAESU-FTDX-000101D

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx 101D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTdx 101D is around:

  • USD 3246.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 3249.95 New / Mint GigaParts
