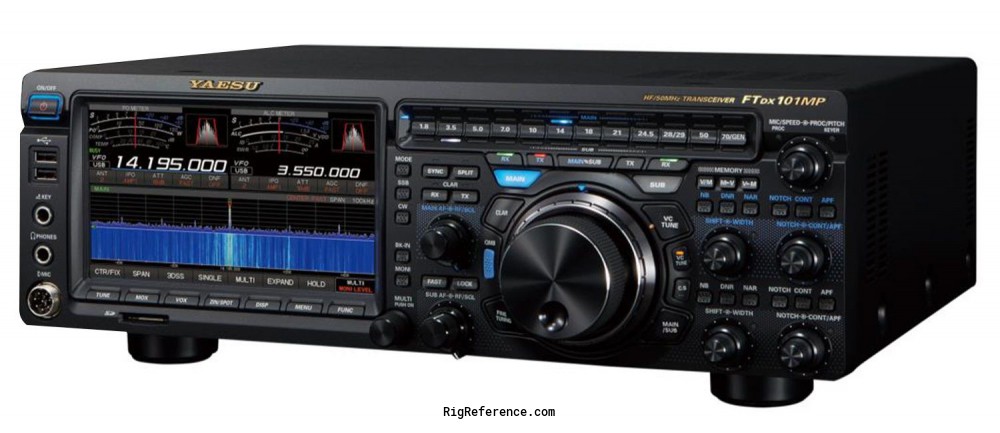

Yaesu FTdx 101MP 200W HF / 6m SDR Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Yaesu's first SDR model. Twin RX.
There is also a 100 W version: Yaesu FTdx 101D

Frequency range

RX-range
0.03-60 MHz
TX-range
10-160 m + WARC / 50-54 MHz
EU version: 4 m (70 MHz)
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  4m
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
-
Selectivity
-
Receiver system
SDR
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   USB   LSB
RF-Output
200 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 2018 and 20xx in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
DSP
Waterfall display
Color touch panel
Independent Main & Sub bands
Active Band Monitor
High-Q Tuning Front End
ATU
USB-ports
Accessories
-
