The basic Elecraft K4 transceiver provides 160-6 m, all-mode coverage; 100 W output; five receive RF sources; and wideband dual watch, allowing the main and sub receivers to be set for the same or different bands.
The Elecraft K4D adds KDIV4 option, with a second set of band-pass filters and additional direct-sampling ADC module. This allows the two receivers to use different antennas – a requirement for diversity receive. Having two sets of band-pass filters also optimizes signal handling when the receivers are on different bands and/or antennas.
The Elecraft K4HD includes all of the above, plus our dual superhet module, the KHDR4. Ideal for competitive field day, contesting, and DXpedition stations. Each superhet receive section includes two crystal filters: one SSB/data bandwidth, one CW bandwidth. The superhet’s 8 MHz IF has excellent dynamic range, so additional crystal filters are not required.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 70cm 10m
- Frequency stability
- ±0.25 p.p.m. (TCXO)
- Tuning steps
- 0.001 kHz
- Memories
- 144 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-54 MHz (2 m/70 cm optional)
- Modulations
- AM FM CW USB LSB RTTY Digital (other) PSK31/63
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Direct-sampling SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 6 m (2m / 70cm optional)
- Modulations
- AM FM CW USB LSB RTTY Digital (other) PSK31/63
- RF-output
- 0.1-10 / 0.1-100

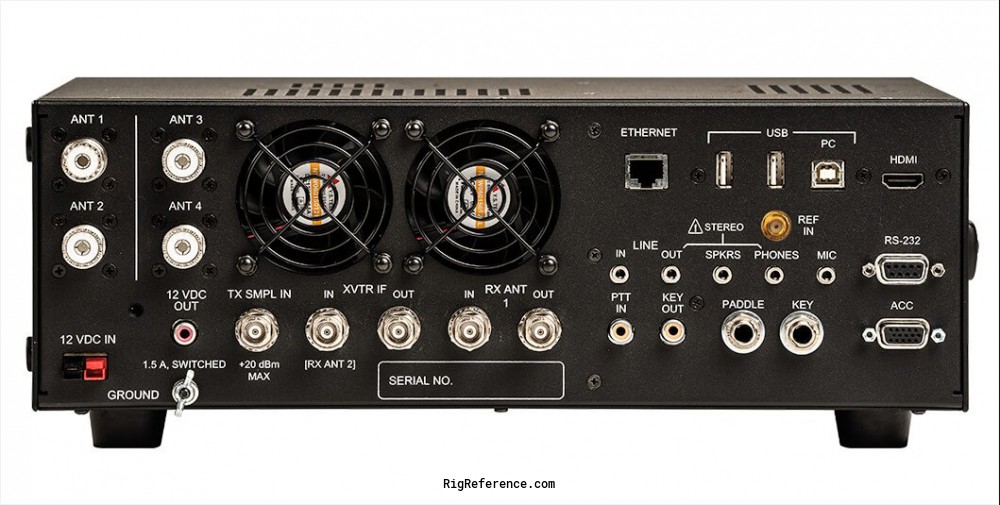

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC
- Current drain RX
- 2 A
- TX
- 23 A max
Physical
- Dimensions (w×h×d)
- 343 × 114 × 254 mm (13.50 × 4.49 × 10.00 in)
- Weight
- 4.54 kg (10.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2019 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Modular hybrid design for easy upgrade and expansion
DSP 7" color touch
display
HDMI video output
Ethernet jack
Remote control
Single or dual panadapter
USB-jacks
RS-232C
Transverter I/O
Iambic keyer
Twin RX
Real-time clock
Built-in help system
Linux-based computing module - Accessories
- Comes with KDIV4 option, a second set of band-pass filters and additional direct-sampling ADC module, plus our dual superhet module, the KHDR4.
- RigReference ID
- 6436
- MPN
- ELECRAFT-K000004HD
